Studiomaster conference mixer Vak 20

Description

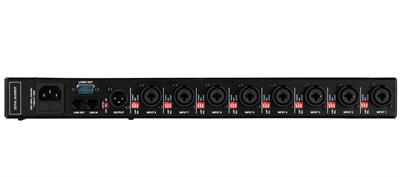

Studiomaster Conference Mixer Vak 20:

The Studiomaster Conference Mixer VaK 20 is a unique dedicated mixer that supports any standard microphone and other inputs to be combined into a conference set-up. It has 8 Mic / Line channel with combo jack input connectors. Also, have a Signal clip indicator and active LED on every channel. It Delegate or Chairman selectable choices on each channel. It includes unique phantom on each channel. Each channel has a combo jack Input connector. It has Switched for Noisy, Natural, Quiet settings for ambient noise advantage.

Product Specification:

• Stable XLR output.
• NOM: Maximum 6
• Level Controller.
• LF / HF cut switches.
• Bar-graph with 7 LED’s
• Limiter switch on the output.
• Logic out to command cameras/speakers.
• Link In / Out to daisy-chain as many VaK 20's needed.

Product Information:

• Brand: Studiomaster
• Model Number: VaK 20
• Output Impedance: 200 Ω
• Net Weight : 2.5 kgs.
• Nominal Output Level: 0 dBu
• Microphone Phantom: +48 V DC
• Power Supply: 240V AC, 100mA, max
• Frequency Response: 20 Hz - 20kHz @ -3dB
• Selectable Filter: LF Cut 50Hz and HF Cut 8KHz
• Nominal Input Level: Mic -61 dBu / Line -17 dBu
• Input Impedance ( Mic / Line ): 4KΩ / 30KΩ
• Dimensions (W x D x H): 482mm  x 152mm  x 44mm (1U)

• Country of origin: China
• Manufacturer details: STUDIOMASTER
• Packer details: STUDIOMASTER
• Importer details: STUDIOMASTER
