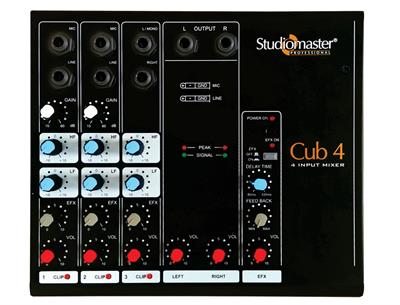

Studiomaster Min Mixer Cub 4:

The Studiomaster Min Mixer Cub 4 from Studiomaster Professional is a series of high-quality compact mixers created with specialities suitable for both newcomers as well as professionals.

Product Features:

• 2 Mono, 1 Stereo Input
• 4 input mixer with Delay EFX
• Balanced 1/4” phono jack for Mic/Line Inputs.
• Gain check with 2 band EQ per channel.
• ¼”TRS Jack unbalanced L/R Main Output
• High-quality Built-in echo with dedicated delay & feedback limitation

Product Information:

• Brand: Studiomaster
• Model Number: CUB 4
• Mic Input: Typically 5K Ω balanced
• Main Output Impedance: <50 Ω
• Signal to Noise Ratio: -76 dB
• Clip indication: 4 dB prior to true clip
• EFX & USB: EFX (Delay)
• Power supply: 150V~250V AC/50Hz
• Dimensions (W x D x H in mm): 221 x 208 x 77
• Net Weight (Kgs.): 1.2
• Frequency Response: 25Hz to 19KHz (+0/-1 dB)
• Equalisation (Treble/Bass): ±16dB @ 10KHz/100 Hz
• Total Harmonic Distortion: Better than 0.8%
• Nominal Gain (Mic/Line/Stereo Line): 65dB/55dB/0dB
• Max Gain (Mic/Line/Stereo Line): 83dB/73dB/18dB
• Mic (Gain Min/Gain Max): +4dBu / -65dBu
• Line (Gain Min /Gain Max): +14dBu / -55dBu
• Line input: 20K Ω (Balanced) /10K Ω (Unbalanced)
• Stereo Line: 20K Ω (Balanced) /10K Ω (Unbalanced)
• Main Output level (Nominal /Max): 0dBu (0.775V RMS) / +17dBu (5.5V RMS)
