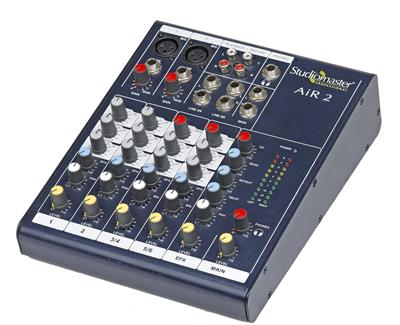

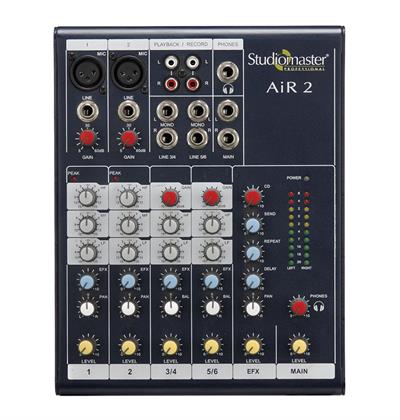

Studiomaster Min Mixer AIR 2:

The Studiomaster Professional AIR 2 is a professional compressed mixer planned to implement your requirements, as well as your workspace. With the abundant characteristics, this mixer is perfect for applications ranging from small PA set-ups to broadcasters and home workshops.

Product Features:

• 3 Band EQ per channel
• Rotary switch knobs per channel
• Stereo RCA CD In & Out with Control.
• L/R Pan-Pot & Clip LED per Channel
• Headphone output with restriction
• Balanced ¼” Jack Master outputs.
• Delay EFX on board & FX relays per channel.

Product Information:

• Brand: Studiomaster
• Model Number: AIR 2
• Net Weight (Kgs.): 1.85
• Gain (Mic/Line): 60dB/40dB
• Total Harmonic Distortion: < 0.03%
• Signal to Noise Ratio: -85dB
• Clip indication: 4 dB prior to true clip
• EFX: Delay with repeat
• Power Supply: AC 240 V / 50Hz
• Mic (Gain Min/Gain Max): -5dBu / -60dBu
• Line (Gain Min /Gain Max): +6dBu / -40dBu
• Frequency Response: 20Hz to 20KHz (+0/-3 dB)
• Dimensions (W x D x H): 190 x 245 x 85 mm
• Equalisation (Treble/Mid/Bass): ±15dB @ 12KHz/2.5KHz/80 Hz
• Main Output level: Nominal  +0dBu (0.775V RMS) / Max +20dBu (7.75V RMS)
