Studiomaster Multi Purpose Mixer Dc 12-2

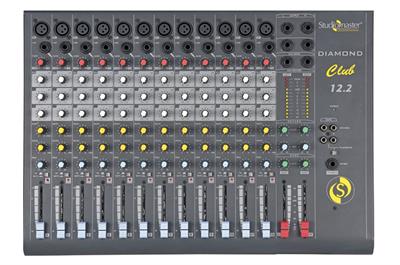

Studiomaster Multi-Purpose Mixer DC 12.2:

The Studiomaster Multi-Purpose Mixer DC 12.2 is the best selling and most advanced mixing consoles in India. These mixers are built to meet international criteria, they are excellent for specialists as well as freshmen. It has L/R Pan-Pot, Illuminated Mute Switch & Clip LED per Channel. Also, have 1 pre & 1 post aux transmits rotary control per channel. It is a gain controller with 3 Band EQ per channel.

Product Specification:

• 12 Mic/Line
• Balanced Mic/Line Inputs
• 2 Aux Sends/ Returns.
• Blue Power on LED
• Smart Grey panel
• ¼ TRS, L/R Main Output.
• Elegant Shape – Curve front
• 12 segments L/R LED meter for Master Level.
• Stereo Tape in/tape out, Headphone out.

Product Information:

• Brand: Studiomaster
• Model Number: DC 12.2
• Nominal Gain (Mic/Line): 60dB/40dB
• Max Gain (Mic/Line): 76dB/56dB
• Mic Input: Typically 5K Ω balanced
• Main Output Impedance: <50 Ω
• Signal to Noise Ratio: -76 dB
• Clip indication: 4 dB prior to true clip
• Power supply: 150V~250V AC/50Hz
• Dimensions (W x D x H): 515x376x89 mm
• Net Weight (Kgs.): 8
• Total Harmonic Distortion: Better than 0.8%
• Mic (Gain Min/Gain Max): -12dBu / -60dBu
• Line (Gain Min /Gain Max): +8dBu / -40dBu
• Frequency Response: 25Hz to 19KHz (+0/-1 dB)
• Line input: 20K Ω (Balanced) /10K Ω (Unbalanced)
• Equalisation (Treble/Mid/Bass): ±16dB @ 10KHz/2.5KHz/100 Hz
• Main Output level (Nominal /Max): 0dBu (0.775V RMS) / +17dBu (5.5V RMS)
