Studiomaster Multi Purpose Mixer Air 8

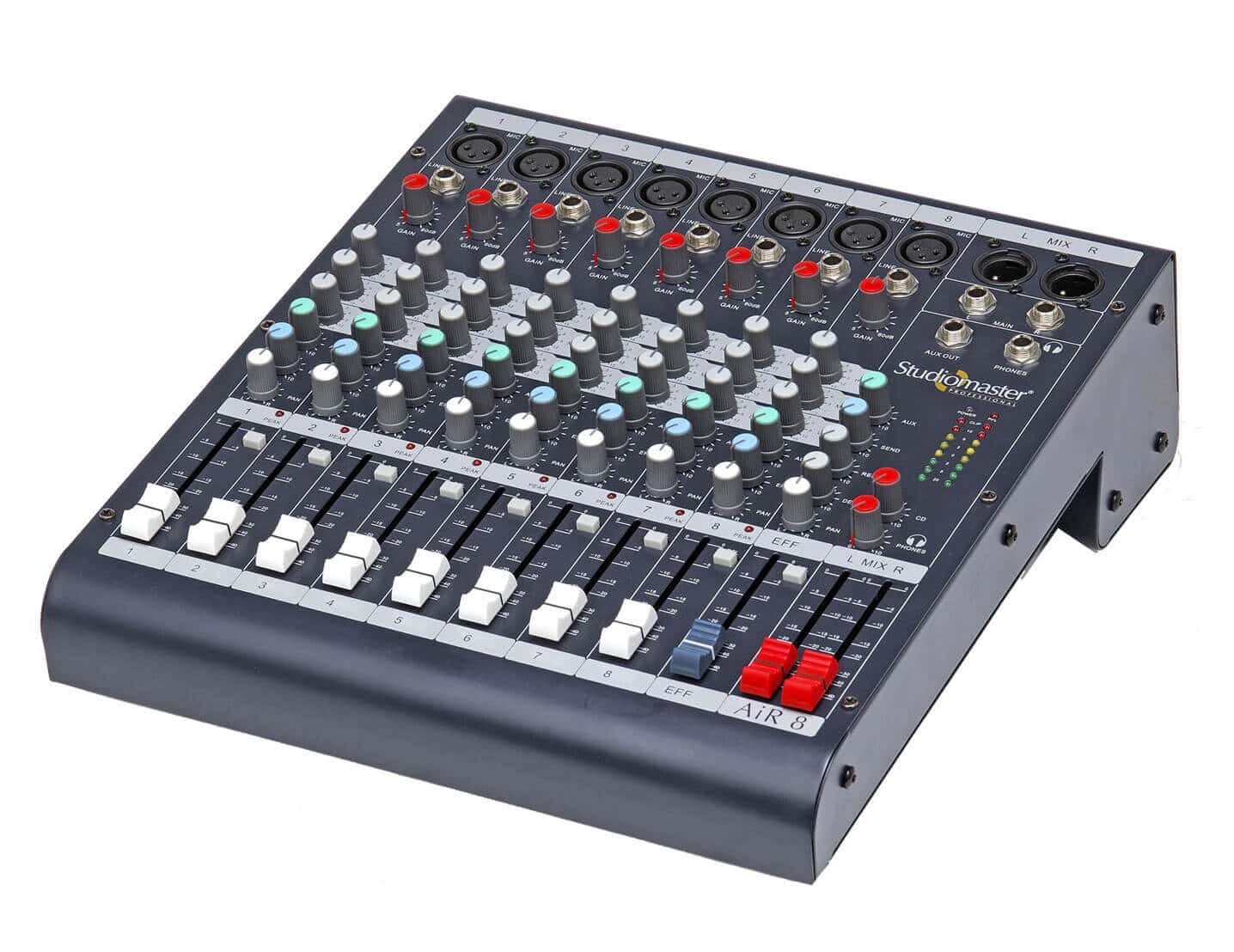

Studiomaster Multi-Purpose Mixer AiR 8:

The Studiomaster Multi-Purpose Mixer AiR 8 is the solution for budget-conscious users who resist sacrificing sound quality and security. The AiR 8 has PFL (Cue) Switch with particular channel control. It controls Headphone output with level control. Also, have L/R pan pot and clip LED per channel and includes 8 Segments L/R LED meter for master level.

Product Specification:

• 8 Mic / Line
• 1 Aux sends.
• 3 Band EQ per channel
• Stereo RCA CD input with Control.
• Delay EFX on board & FX sends per channel.
• Equal XLR & ¼” Jack Master Output.

Product Information:

• Brand: Studiomaster
• Model Number: AiR 8
• EFX : Delay with repeat
• Power Supply: AC 240 V / 50Hz
• Net Weight (Kgs.): 3.8
• Gain (Mic/Line): 60dB/40dB
• Total Harmonic Distortion: < 0.03%
• Signal to Noise Ratio: -85dB
• Clip indication: 4 dB prior to true clip
• Mic (Gain Min/Gain Max): -5dBu / -60dBu
• Line (Gain Min /Gain Max): +6dBu / -40dBu
• Dimensions (W x D x H): 305 x 335 x 115 mm
• Frequency Response: 20Hz to 20KHz (+0/-3 dB)
• Equalisation (Treble/Mid/Bass): ±15dB @ 12KHz/2.5KHz/80Hz
• Main Output level: Nominal +0dBu (0.775V RMS) / + Max  20dBu (7.75V RMS)
