Studiomaster Multi Purpose Mixer Dc 16 2

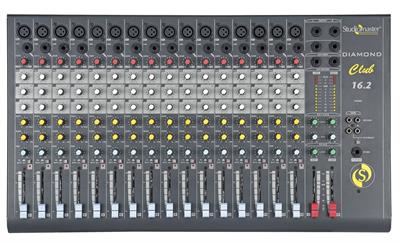

Studiomaster Multi-Purpose Mixer DC 16.2:

The Studiomaster Multi-Purpose Mixer DC 16.2 is the biggest selling and most committed mixing consoles in India. These mixers are manufactured to match international norms, they are excellent for specialists as well as beginners. It includes L/R Pan-Pot, Illuminated Mute Switch & Clip LED per Channel. It also has 1 pre & 1 post aux sends rotary controller per channel. Also, have the Gain controller with 3 Band EQ per channel.

Product Specifications:

• 16 Mic/Line.
• Smart Grey panel.
• Balanced Mic/Line Inputs.
• 2 Aux Sends/ Returns.
• Blue Power on the LED.
• ¼ TRS, L/R Main Output.
• Classic Shape-Curve front.
• Stereo Tape in/tape out, Headphone out.
• 12 sections L/R LED meter for Master Level.

Product Information:

• Brand: Studiomaster
• Model Number: DC 16.2
• Signal to Noise Ratio: -76 dB
• Net Weight (Kgs.): 10
• Clip indication: 4 dB prior to true clip
• Power supply: 150V~250V AC/50Hz
• Nominal Gain (Mic/Line): 60dB/40dB
• Max Gain (Mic/Line): 76dB/56dB
• Mic (Gain Min/Gain Max): -12dBu / -60dBu
• Line (Gain Min /Gain Max): +8dBu / -40dBu
• Mic Input: Typically 5K Ω balanced
• Main Output Impedance: <50 Ω
• Frequency Response: 25Hz to 19KHz (+0/-1 dB)
• Total Harmonic Distortion: Better than 0.8%
• Dimensions (W x D x H): 555 x 376 x 89 mm
• Line input: 20K Ω (Balanced) /10K Ω (Unbalanced)
• Equalisation (Treble/Mid/Bass): ±16dB @ 10KHz/2.5KHz/100 Hz
• Main Output level (Nominal /Max): 0dBu (0.775V RMS) / +17dBu (5.5V RMS)
