Studiomaster Amplifier PA 7 5

Description

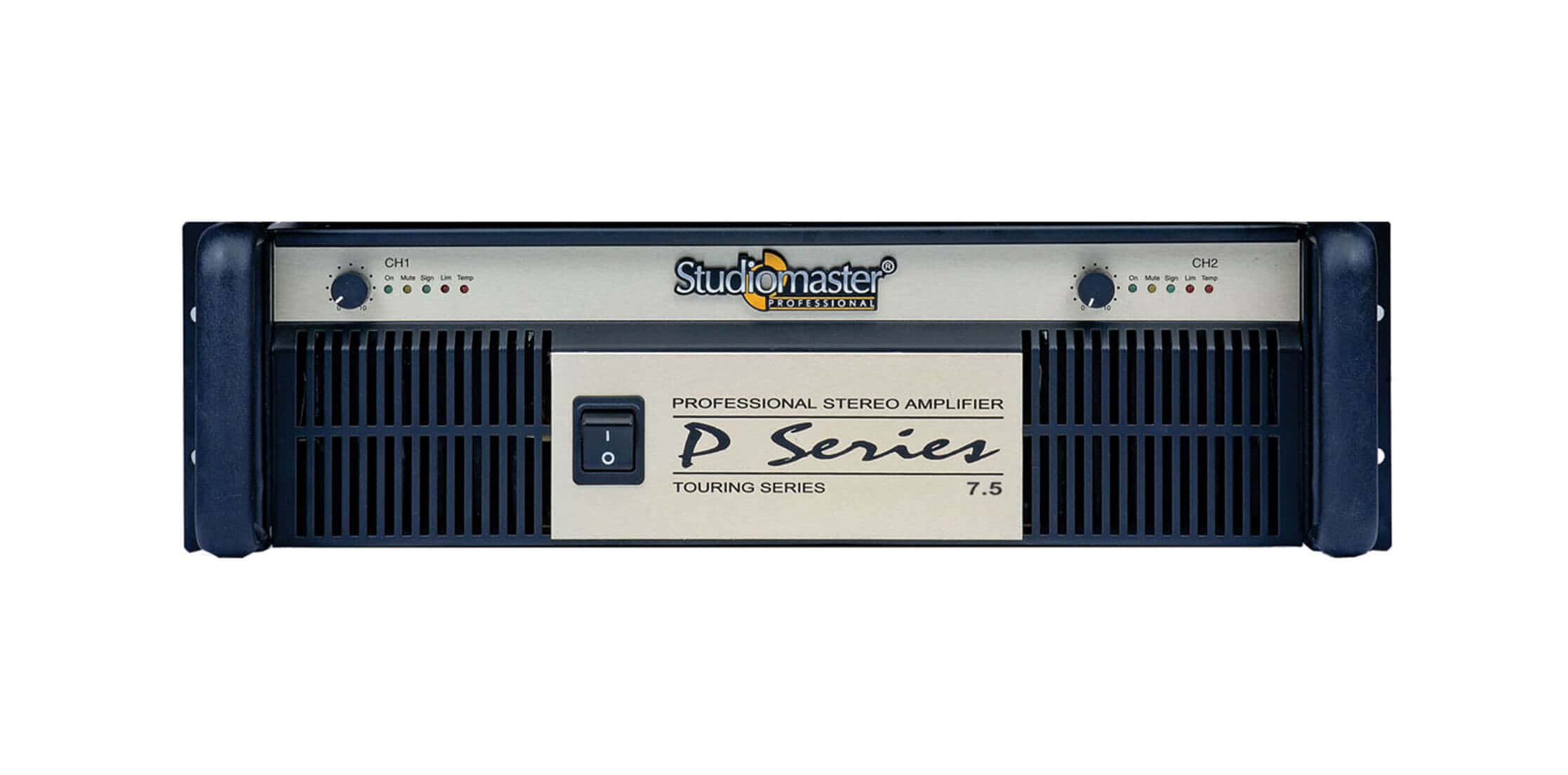

Studiomaster Amplifier PA 7.5:

The Studiomaster Amplifier PA 7.5 is a range of high-power amplifiers formed to have the outstanding sound character, superior power efficiency and supported operational security. The amplifiers are using two types of power supplies, the switch mode power supply provides operation on voltages as Low as 130V, at the same time Linear Power Supply delivers a punch packed show. It includes High-current toroidal transformers with high-grade centres for higher transient response and low-noise even at 2 Ohms. It has Switchable Limiter Switch to protects speakers from loss due to twisted input signals. It provides High-quality glass epoxy, double-sided PTH PCB’s and high-grade elements assure safety in even tough ambient environments.

Product Specification:

• Rated for 2 Ohms process.
• 41-detent rotating volume knobs.
• Professional high-power amplifiers.
• Input: Equitable XLR and 1/4” Stereo Jack.
• 3 switchable operational modes: Stereo, Mono and Bridge.
• Switchable Low-cut switch for security and tight-low end execution.
• Mute, Signal, Clip and fault LED indicators assists you to control performance.
• Sensitivity (0dB or+4 dB) selection switch allows flexibility in connection of input sources.
• Original cooling using low-noise variable speed fans and direct mounted over-designed heat-sinks.

Product Information:

• Brand: Studiomaster
• Model Number: PA 7.5
• Damping factor (8 Ω): > 400 :1
• Frequency Response: 20Hz - 20kHz (±0.5dB)
• Input Connector (Per CH.): XLR, 1/4” TRS Jack
• Output Connector (Per CH.): Speakon Connector
• Dimensions (WxDxH): 482 x 570 x 130mm (3U)
• Net Weight (Kgs.): 40
• Power output 2 Ω (RMS),20Hz-20kHz,1% THD: 2 x 3750 W
• Power output 2 Ω (EIA), 1kHz , 1%THD: 2 x 6400 W
• Power output 4 Ω (RMS),20Hz-20kHz,1% THD: 2 x 2600 W
• Power output 4 Ω (EIA), 1kHz , 1%THD: 2 x 3600 W
• Power output 8 Ω (RMS),20Hz-20kHz,1% THD: 2 x 1550 W
• Power output 8 Ω (EIA), 1kHz , 1%THD: 2 x 1800 W
• Bridged Mode 4 Ω (RMS),20Hz-20kHz,1%THD:7500 W
• Bridged Mode 4 Ω (EIA), 1kHz , 1%THD: 12800 W
• Bridged Mode 8 Ω (RMS),20Hz-20kHz,1% THD: 5200 W
• Bridged Mode 8 Ω (EIA), 1kHz , 1%THD: 7225 W

• Country of origin: China
• Manufacturer details: STUDIOMASTER
• Packer details: STUDIOMASTER
• Importer details: STUDIOMASTER
