Studiomaster Amplifier Dja 5000

Studiomaster Amplifier DJA 5000:

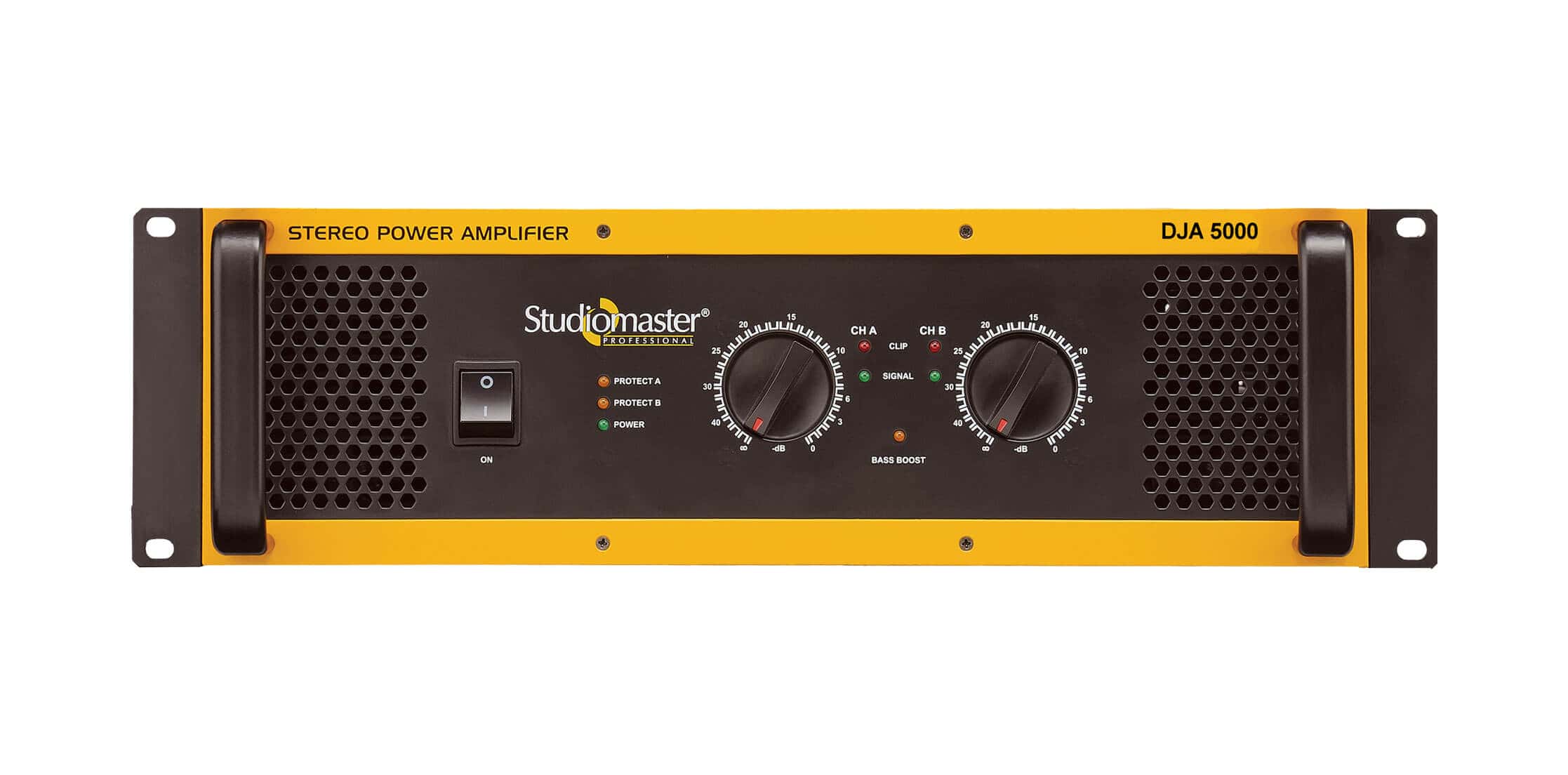

The Studiomaster Amplifier DJA 5000 is created to provide accurate, effective power with the legendary Studiomaster Professional sound character and security that professionals depend on. It presents mains voltage operation 220V AC-240V AC as well as low voltage operation (150V AC). It combines LED Indicators on the front panel for power, Signal, Clip, bass boost and Protects.

Product Specification:

• High cooling Fans.
• 19” rack mountable.
• Works on 2 Ohms.
• Input: Equitable XLR & 1/4” Jack.
• Stereo, Bridge and Parallel mode choice switch.
• Protection: Temperature, DC Short Circuit.
• Output: Speakon and Binding Post Connectors.
• Strong and Sturdy Professional Stereo Power Amplifier.
• EQ Processing, Low Cut, Subwoofer selection choices on the rear panel.

Product Information:

• Brand: Studiomaster
• Model Number: DJA 5000
• Damping factor: > 350 :1 (8 Ω)
• Frequency Response: 20Hz - 20kHz (-3dB)
• Net Weight (Kgs.): 32
• Protection Devices: Temperature, DC, Short Circuit, Soft Start
• Input Connector (Per Channel): XLR, 1/4” TRS Jack
• Output Connector (Per Channel): Speakon / Binding Posts
• Dimensions (W x D x H): 482 x 530 x 132mm (3U)
• Power Output 2 Ω (RMS), 20Hz-20kHz,1% THD: 2 x 2800 W
• Power Output 2 Ω (EIA), 1kHz , 1%THD : 2 x 3700 W
• Power Output 4 Ω (RMS), 20Hz-20kHz, 1% THD: 2 x 1900 W
• Power Output 4 Ω (EIA), 1kHz, 1%THD: 2 x 2500 W
• Power Output 8 Ω (RMS), 20Hz-20kHz, 1% THD: 2 x 1200 W
• Power Output 8 Ω (EIA), 1kHz , 1%THD: 2 x 1400 W
• Bridged Mode 8 Ω (RMS), 20Hz-20kHz,1% THD: 3800 W
• Bridged Mode 8 Ω (EIA), 1kHz , 1%THD: 5000 W
