Studiomaster Amplfier Dja 100 Multi Input Amplifier

Studiomaster Amplifier DJA-100 Multi-Input Amplifier:

The Studiomaster Amplifier DJA-100 is a multi-input high-quality stereo power amplifier contributing excellent sound simplicity and reliability, for a variety of applications. It includes Speaker connections on push terminals and mono jack sockets. It Separates level controls for L and R controls on Front Panel.

Product Specifications:

• 4 input amplifier.
• 19” rack mountable.

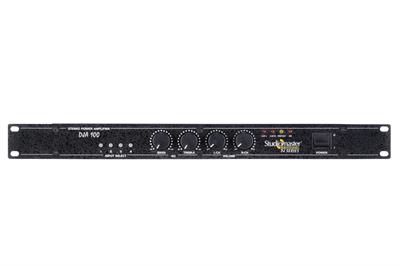

• EQ Bass / Treble control on Front Panel.
• A clip, Protect, Power LED indicators per channel.

Product Information:

• Brand: Studiomaster
• Model Number: DJA 100
• Net Weight (Kgs.): 7.2
• Power Output 4 Ω: 2 x 110 W (RMS)
• Power Output 8 Ω: 2 x 80 W (RMS)
• Frequency Response: 20Hz-20KHz (±3db).
• Damping Factor ( 8Ω ): > 100: 1
• Dimensions ( WxDxH ): 482 x 285 x 44mm (1U)
• Protection Devices: Short Circuit, Overheating.
• Input Connector (Per Ch): RCA (4 input selector switches).

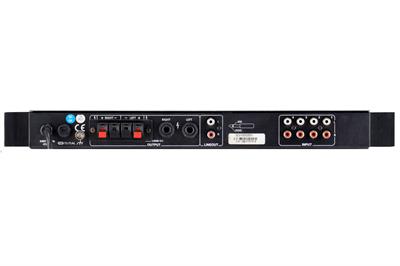

• Output Connector (Per Ch): Spring-loaded terminals, 1/4” TRS jack.
