Studiomaster Mixer C 142 Efx

Description

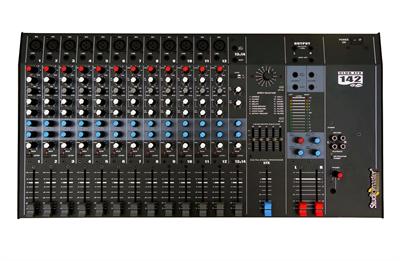

Studiomaster Mixer C142 EFX:

The Studiomaster Mixer C142 EFX is composed to give exactly relevant characteristics with simplicity, making the series proper for a broad range of applications. It has 10 Mic / Line, 2 Stereo Line Inputs and 16-preset Analogue Effects. Also, have 3-band EQ with the mid sweep on the mono channel, 2- band on the stereo. It includes 2 Aux sends and 1 stereo return with Rotary controllers per channel.

Product Specification:

• 5-band graphic EQ on board.
• 12 Sections L/R Led Meter for master level.
• Stereo playback input and Rec out RCA jack.
• Balanced 1/4" TRS Jack L/R main Output.
• Globally switched +48V phantom power switch.

Product Information:

• Brand: Studiomaster
• Model Number: C 142EFX
• EFX & USB: EFX
• Phantom Supply: +48V
• Power supply: 150V~250V AC/50Hz
• Net Weight (Kgs.): 6.5
• Mic Input: Typically 2K Ω balanced
• Main Output Impedance: <75 Ω
• Total Harmonic Distortion: <0.004%
• Signal to Noise Ratio: -75 dB
• Clip indication: 5 dB prior to true clip
• Frequency Response: 25Hz to 20KHz (+0/-1 dB)
• Dimensions (W x D x H): 608 x 322 x 87 mm
• Nominal Gain (Mic/Line/Stereo Line): 60dB/40dB/12dB
• Max Gain (Mic/Line/ Stereo Line): 75dB/55dB/27dB
• Mic (Gain Min/Gain Max): -10dBu / -60dBu
• Line (Gain Min /Gain Max): +10dBu / -40dBu
• Stereo (Gain Min /Gain Max): 0dBu/-12dBu
• Line input: 20K Ω (Balanced) /10K Ω (Unbalanced)
• Stereo Line: 15K Ω (Balanced) /10K Ω (Unbalanced)
• Stereo Mic/Line (Treble/Bass): ±15dB @ 12KHz/45 Hz
• Main Output level (Nominal /Max): 0dBu (0.775V RMS) / +22dBu (10V RMS)
• Mono Mic [Treble/Mid(with sweep)/Bass]: ±15dB @ 12KHz/350Hz-6KHz/60 Hz

• Country of origin: China
• Manufacturer details: STUDIOMASTER
• Packer details: STUDIOMASTER
• Importer details: STUDIOMASTER
