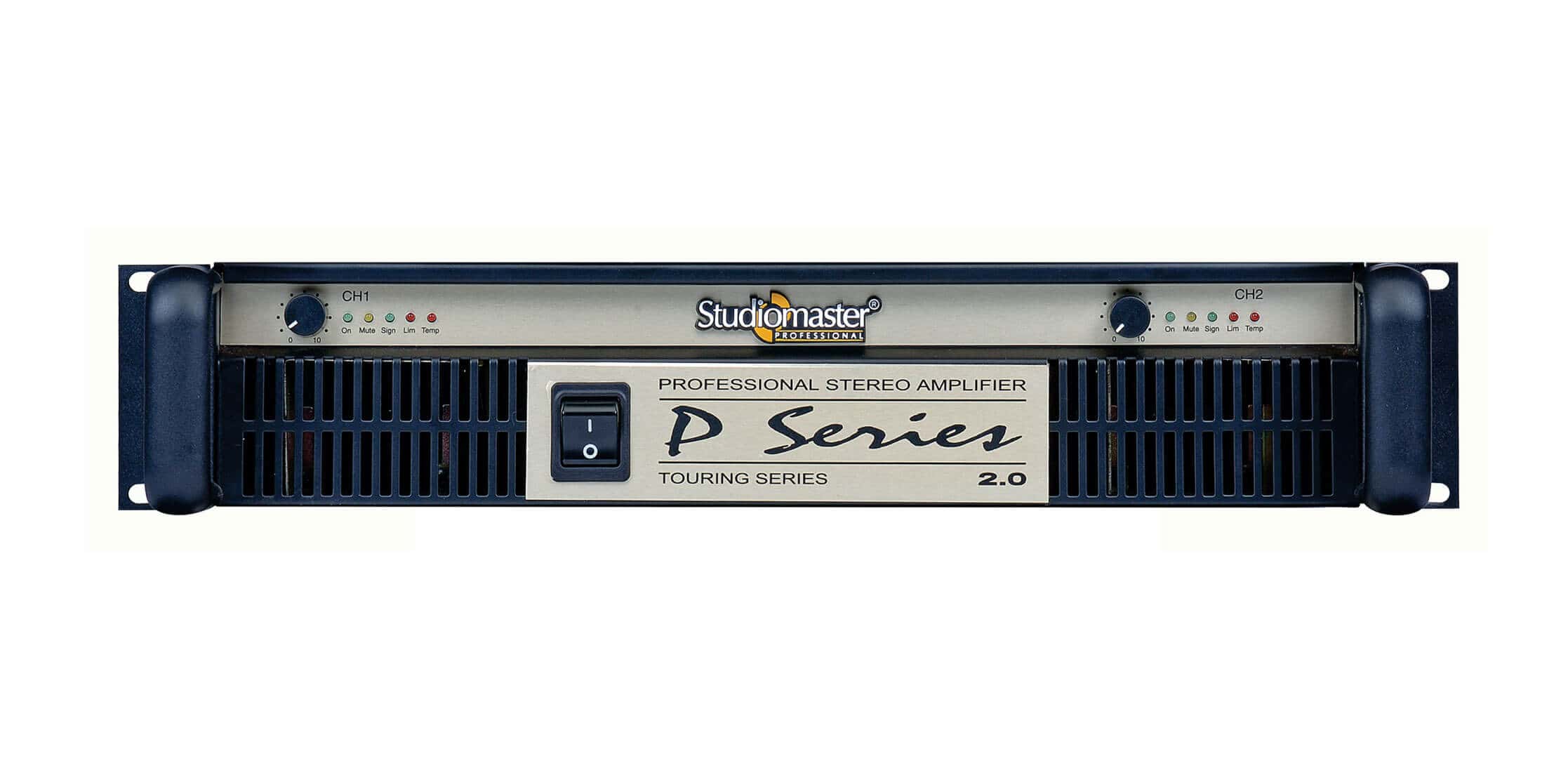

Studiomaster Amplifier PA 2 0

Description

Studiomaster Amplifier PA 2.0:

The Studiomaster Amplifier PA 2.0 is a range of high-power amplifiers formed to have the excellent sound quality, superior power performance and guaranteed operational security. It provides High-quality glass epoxy, double-sided PTH PCB’s and high-grade elements secure reliability in even tough ambient environments. The amplifiers are using two types of power supplies, the switch mode power supply provides operation on voltages as Low as 130V, at the same time Linear Power Supply presents a punch packed performance. It includes High-current toroidal transformers with high-grade cores for the higher transient response and low-noise even at 2 Ohms. It has Mute, Signal, Clip and fault LED indicators assists you to monitor performance.

Product Specification:

• 41-detent rotary volume knobs.
• Rated for 2 Ohms operation.
• Professional high-power amplifiers.
• Input: Equitable XLR and 1/4” Stereo Jack.
• 3 switchable operational modes: Stereo, Mono and Bridge.
• Switchable Low-cut switch for security and tight-low end performance.
• Switchable Limiter Switch to preserves speakers from damage due to changed input signals.
• Intelligent cooling using low-noise variable speed fans and straight mounted over-designed heat-sinks.
• Sensitivity (0dB or+4 dB) selection switch allows flexibility in connection of input sources.

Product Information:

• Brand: Studiomaster
• Model Number: PA 2.0
• Damping factor (8 Ω): > 200 :1
• Frequency Response: 20Hz - 20kHz (±0.5dB)
• Input Connector (Per CH.): XLR, 1/4” TRS Jack
• Output Connector (Per CH.): Speakon Connector
• Dimensions (WxDxH): 482 x 455 x 88mm (2U)
• Net Weight (Kgs.): 19
• Power Output 2 Ω (RMS),20Hz-20kHz,1%THD: 2 x 1000 W
• Power Output 2 Ω (EIA), 1kHz ,1%THD: 2 x 2250 W
• Power Output  4 Ω (RMS),20Hz-20kHz,1% THD: 2 x 800 W
• Power Output  4 Ω (EIA), 1kHz , 1%THD: 2 x 1380 W
• Power Output 8 Ω (RMS),20Hz-20kHz,1% THD: 2 x 500 W
• Power Output 8 Ω (EIA), 1kHz , 1%THD: 2 x 755 W
• Bridged Mode 4 Ω (RMS),20Hz-20kHz,1% THD: 2000 W
• Bridged Mode  4 Ω (EIA), 1kHz , 1%THD: 4500 W
• Bridged Mode  8 Ω (RMS),20Hz-20kHz,1% THD: 1600 W
• Bridged Mode  8 Ω (EIA), 1kHz , 1%THD: 2760 W

• Country of origin: China
• Manufacturer details: STUDIOMASTER
• Packer details: STUDIOMASTER
• Importer details: STUDIOMASTER
