Studiomaster Amplfier Dja 550 Multi Input Amplifier

Studiomaster DJA 550 Multi-Input Amplifier:

The Studiomaster DJA 550 is a multi-input high-quality stereo power amplifier proposing great sound simplicity and sincerity, for a variety of applications. It provides  Speaker connections on push terminals and mono jack sockets. It Classifies level controls for L and R controls on Front Panel.

Product Specification:

• 4 input amplifier
• 19” rack mountable.

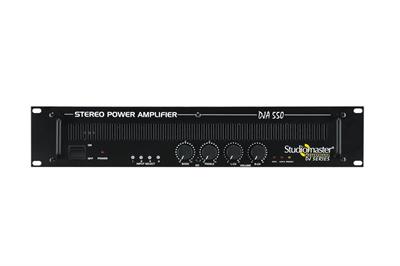

• EQ Bass / Treble control on Front Panel.
• A clip, Protect, Power LED indicators per channel.

Product Information:

• Brand: Studiomaster
• Model Number: DJA 550
• Damping Factor ( 8Ω ): > 100: 1
• Net Weight (Kgs.): 10.5
• Dimensions ( WxDxH ): 482 x 330 x 88 mm (2U)
• Power Output are (RMS) 4 Ω-2 x 250 W, 8 Ω-2 x 130 W
• Frequency Response: 20Hz-20KHz (±3db).
• Protection Devices: Short Circuit, Overheating

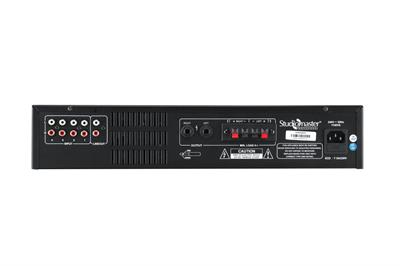

• Input Connector (Per Ch): RCA (4 input selector switches)
• Output Connector (Per Ch): Spring-loaded terminals, 1/4” TRS jack
