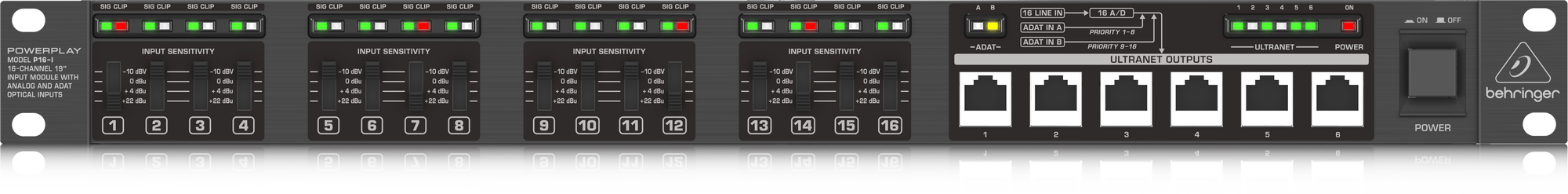

Behringer Powerplay P16-I 16-channel Input Module

Description

Behringer Powerplay P16-I 16-channel Input Module is a simple and reasonable way to distribute up to 16 channels of audio. This P16-I provides you with 16 ADAT optical inputs and 16 balanced TRS analog inputs that you can distribute to 6 Powerplay P16-M personal mixers over easy ethernet cables. Plus because of the digital connection to the mixers, you'll experience low-noise audio no matter how far the mixers are from the P16-I. If you want a monitoring system with flexible I/O and a ton of functionality for your church, school, band, or theater, you need the Behringer Powerplay P16-I input module.

It's comfortable to connect your audio to the Powerplay P16-I input module. The P16-I is perfect for recording studios that want an efficient way to manage personal monitoring, as well as larger stage performances and productions. Pick from balanced TRS analog inputs or ADAT optical inputs for up to 16 channels of distributed audio.

Behringer P16-I input module connects to your P16-M personal mixers with easy ethernet cables, giving it simple to get up and running. You can control the ethernet cables long distances from the P16-I to your mixers without negatively influencing your audio.

When you manage a studio, operate sound at your church, or work a performance theater, you'll like how simple it is to integrate the Behringer P16-I into your installation. Its 1U rack-mountable configuration saves space, and its digital connectivity lets you manage long cables to and from the P16-I without diminishing your audio quality.

Product Features:

• Affordable and easy way to distribute up to 16 channels of audio
• Your selection of analog or digital inputs for convenience
• Rackmountable 1U design makes it ideal for permanent installation
• Digital connectivity for low-noise audio
• Accommodates up to six Powerplay P16-M personal mixers

Product details:

• Brand: Behringer
• Model Number: Powerplay P16-I
• Inputs: 16 x 1/4 inch TRS, balanced, line-level
• Input level: +4 dBu optimal, +22 dBu maximum
• Input gain: -10 dBV / 0 dBu / +4 dBu / +22 dBu, adjustable
• Gain selector: 4-position switch (per channel)
• Optical inputs: 2 x standard TOS-link optical connector
• Input format: ADAT, 16 / 20 / 24-bit 48 kHz (standard)/ 44.1 kHz
• Synchronization: From ADAT input A only (external clock)
• Indicators: 2 x LED's
• Input selection: Auto select for channels 1 – 8 / 9 – 16
• Power consumption: Max. 40 W
• Mains connection: Standard IEC receptacle
• Dimensions (HxWxD): Approx. 44 x 482 x 190 mm
• Weight: Approx. 4.6 lbs (2.1 kg)
• Signal: 16 channels, plus bus-power for P16-M
• Frequency response: 20 Hz - 20 kHz (+0 / -3 dB)
• Dynamic range: Typical 92 d
• Connectors: RJ45
• Cables: Shielded CAT5
• Cable length: Max. 246 ft (75 m) recommended

• Country of origin: China
• Manufacturer details: Behringer
• Packer details: Behringer
• Importer details: Behringer
