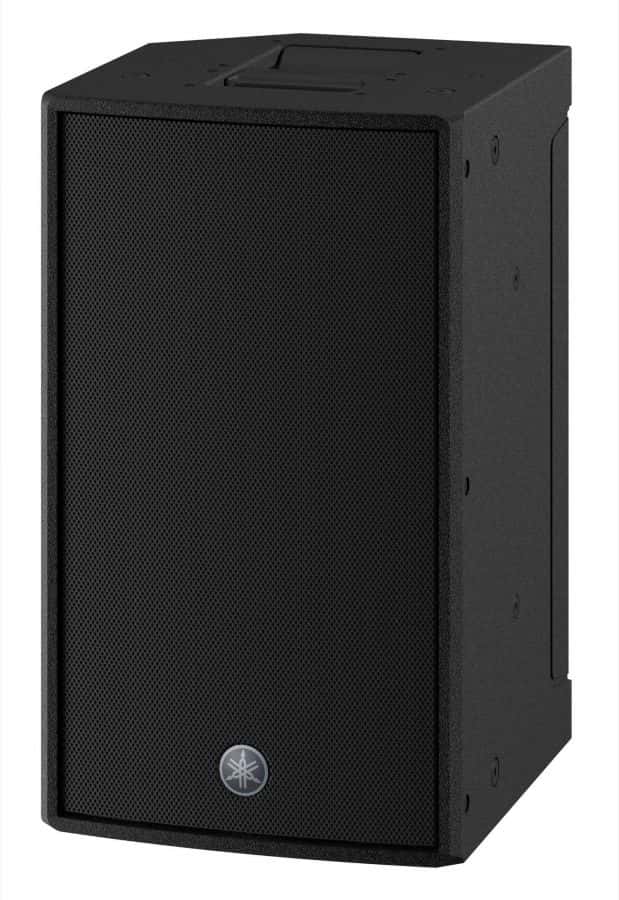

Yamaha CZR10 700W 10 Inch Passive Speaker

Description

Yamaha CZR10 700W 10 Inch Passive Speaker

---

Yamaha CZR10 700W 10 Inch Passive Speaker is perfectly designed to offer you powerful handling and amazing sonic performance in a portable, lightweight, and strong design. This 700W is perfect for a range of live or studio performances and fixed sound environments from live bands at outdoor celebrations to DJs in clubs these loudspeakers give high-quality, crystal clear sound with powerful bass performance. For also an extra bottom end to round out your sound, adding CXS XLF series passive subwoofers can increase your system’s low-frequency performance dramatically down to an unexpected 29Hz for beating low-frequency reproduction ability that’s sure to impress.

---

The CZR10 comes with 10 inches with transducers with die-cast aluminum structures with a 3-inch voice coil for extremely powerful input, and a lightweight still strong neodymium magnet that accommodates to add power and punch to your bass. This HF unit delivers clear, rising highs from its titanium diaphragm with a 2-inch voice coil and neodymium magnet.

---

Best in Class SPL performance

The CZR10 comes with two passive subwoofers, which can increase the system’s low frequency down to an unexpected 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors give safe, flexible, and stable, connectivity. Outfitted with two input/parallel connectors for numerous subwoofers plus individual unique output connectors for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is able to a simpler connection with a single 4-pole speakON cable.

---

Intelligent processing to increase system performance

While used in series with Yamaha PX Series amplifiers or other cooperative signal processors, CZR Series loudspeakers can take complete benefit of dedicated speaker processor tuning settings. In addition, like the DXS XLF models, CXS XLF subwoofers are able of use in the cardioid mode given the processor has the dynamic DSP settings.

---

High-quality materials, road-tested toughness

The especially invented enclosure features lightweight and strong premium plywood with a mark-resistant, sturdy Polyurea coating for enhanced portability and stability on the road, as well as two separate sockets for pole-mounting at either -7° down tilt or level. This CXS XLF is outfitted with both a 35mm pole socket and an M20 threaded socket to support a comprehensive range cabinet.

---

Flexible Deployment Options

Yamaha CZR10 loudspeakers come outfitted with lots of equipment points for any installation environment, providing for rigged application with standard eyebolts. Specialized U brackets are also ready for comfortable flying/hanging installation.

---

Product Features:

• High-quality 2-way loudspeaker with a 2 inch HF and a 10 inch LF.
• Premium Yamaha's own Wide Dispersion CD Waveguide Horn.
• Powerful 700W(PGM) power handling and Bi-amp capable.
• Floor monitoring setting.
• Compact, lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Double-angle pole socket
• Optional speaker cover (SPCVR-DZR10).
• Rotatable horn and quality of U-bracket options (UB-DZR10H/V) for rigging provide for extremely flexible setup and speaker placement.

  ---

Product Details:

• Brand: Yamaha
• Model Number: CZR10
• Series: CZR

• Speaker type: 2-way Speaker, Bass-reflex
• Frequency range (-10dB): Passive: 43 Hz - 20 kHz, Normal (1): 46 Hz - 20 kHz, FOH (1): 43 Hz - 20 kHz
• Coverage area: H90ﾟ x V60ﾟ Rotatable Constant Directivity Horn
• Components:
• LF: 10 inch Cone, 3 inch Voice Coil, Neodymium magnet
• HF: 2 inch Voice Coil, 1 inch Throat Compression Driver, Neodymium magnet, Titanium diaphragm
• Crossover: 2.5 kHz
• Power rating;
• NOISE: Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W
• PGM: Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
• PEAK: Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 200W
• Nominal impedance: Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω

  ---

• SPL
• Sensitivity (1W; 1m on axis): Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL
• Peak (Calculated): Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL
• I/O connectors: SpeakON NL4MP x 2 (Parallel)
• Handle: Aluminium die-cast, Top x1, Side x1
• Pole socket: Φ35 mm x2 (0° or -7°)
• Rigging: M10 x 8, M8 x 2
• Dimensions: 315 x 537 x 345 mm
• Net weight: 14.0 kg
• Options: Bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
•  Manufacturer Warranty: 1 Year

• Country of origin: China
• Manufacturer details: YAMAHA
• Packer details: YAMAHA
• Importer details: YAMAHA
