Samson Gibson Style Airline Guitar Wireless Pedal System

Description

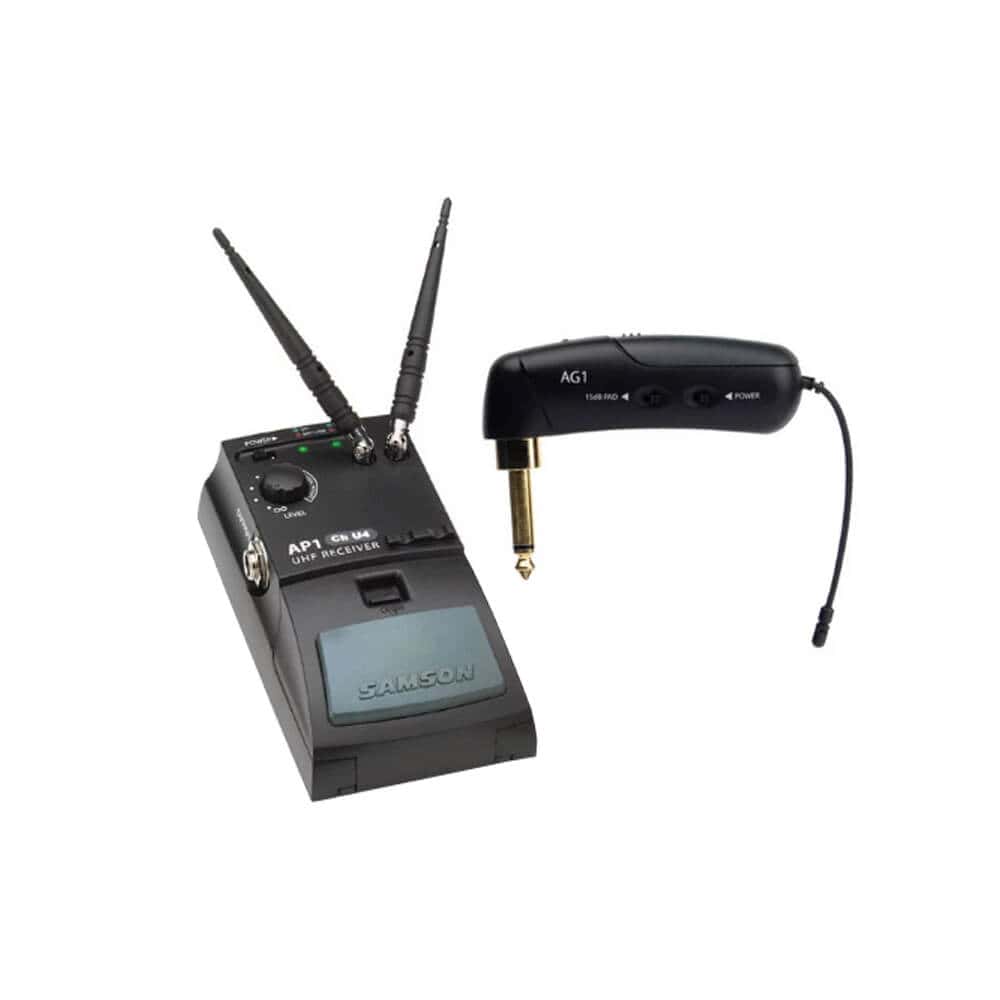

Samson Gibson Style Airline Guitar Wireless Pedal System

Samson Gibson Style Airline Guitar Wireless Pedal System is introducing with feature an arrangement of on-board controls: red/green LED for Power On/Off, A Power On/Off and Mute switch, a Peak LED and an Input Level control for complex pickups. Plus Ultra High Frequency indicates more precise frequencies with less interference. Intended for use with your portable effect pedals, the AP1 diversity receiver provides you reception you can ever depend on.

It also features a 1/4 inch output jack, Peak LED, Power switch and volume control. You can use an AC adapter or 9-volt battery to power the receiver. While you unplug the input to the receiver, the battery is disabled to save power. The AG1 for standard Gibson style end mount inputs and all others. Allow up to 14 hours of battery life using a single AA battery.

Product Features:

• Easy and small to carry store & transfer miniature wireless instrument system.
• AG1 connects directly into Gibson style guitar output jacks.
• Receiver powered by either an AC adapter or a 9-volt battery.
• 1/4 inch output jack on receiver for a no-brainer bond to your amplifier.
• Transmitter operates on a triple-A battery with 14-hour average battery life!
• Power/low battery LED indicator with 300 feet operating range (line-of-sight).
• Power and 15dB Pad switches.

  ---

  Product Details:

• Brand: Samson
• Model Number: Gibson Style
• Series: Airline
• Type of System: Floor Mount
• RF Carrier Frequency Range: 801 - 805 MHz F3/FM
• Approx. Working Range: 100m (328 Feet)
• Overall Frequency Response: 50Hz - 15kHz (at -30dBv ±4dB output)
• Signal-to-Noise Ratio; Greater than 95dB (IHF-A)
• Number Of Channels: 1 Fixed Channel (Channel U1/801.375 MHz)
• Number Of Simultaneous Systems: 6
• Type of Receiver: AF1 Floor Mount
• Type of Outputs: 1/4 inch Phone Jack, Unbalanced
• Power Requirements: AC Adapter (12v DC / More than 200mA) or 9v Battery
• Battery Type/Approx. Life: 9v,
• Display 2-color LED (x 2): Power On (Green) / Battery (Red)
• TX (Green) / Peak (Red)
• Mounting Options; Floor Mount Guitar Effects Pedal Style
• Antenna Type: Dual 1/4 Wave Length Rod Antennas
• Type of Transmitter: UF1 Plug-in Wireless UHF Guitar Transmitter
• Type of Output Connector: 1/4 inch Male Phone Plug
• Battery Type/Approx. Life: One, 14 Hours
• Mute Switch: Yes
• Level Control: Yes, Variable Level Control to Accommodate Different Pickups
• Antenna Type: Permanently Attached 1/4 Wave Length Wire
• Display Power: On (LED Flash), Low Battery
• Weight: 363 g
• Dimensions: 21 x 13.3 x 7.6 cm

• Country of origin: China
• Manufacturer details: SAMSON
• Packer details: SAMSON
• Importer details: SAMSON
