Samson Fender Style Airline Guitar Wireless Pedal System

Description

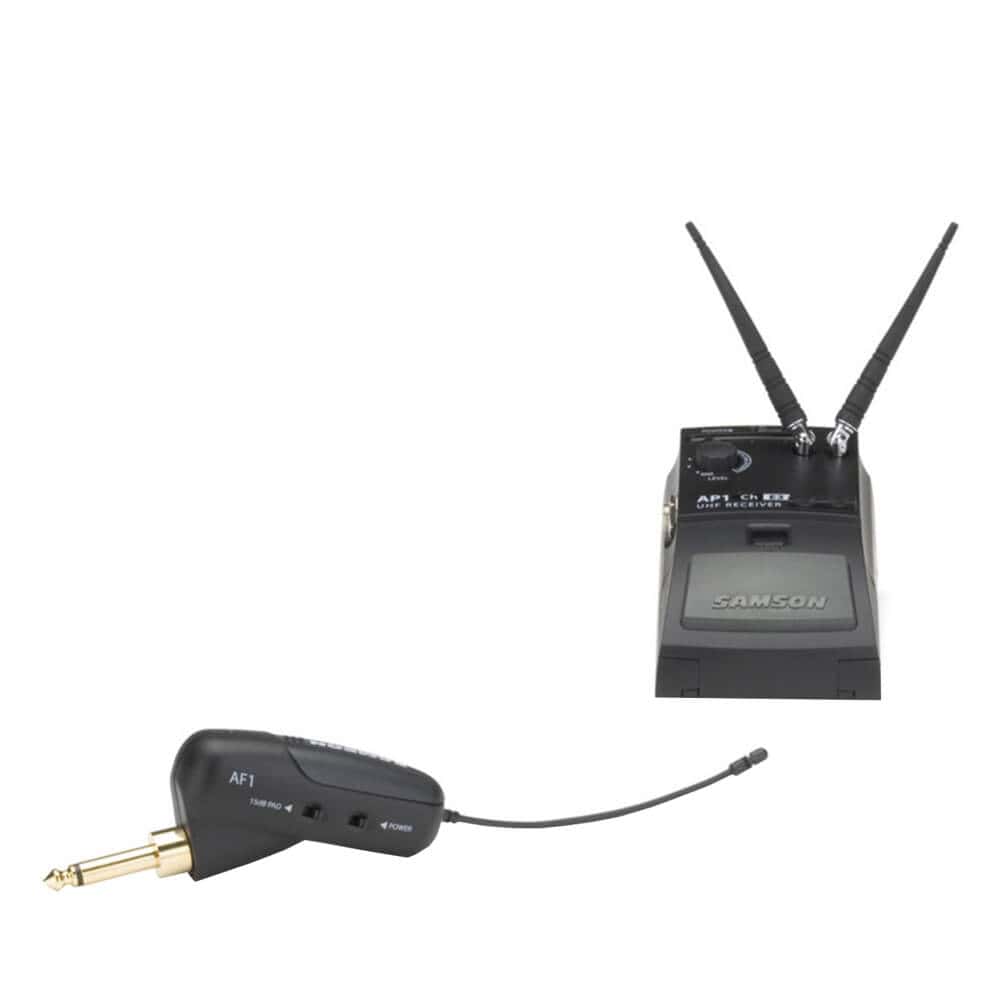

Samson Fender Style Airline Guitar Wireless Pedal System

Samson Fender Style Airline Guitar Wireless Pedal System is perfectly designed for application with your portable effect pedals, the AP1 pedal receiver presents reception you can ever depend on. It features a 1/4 inch output jack, Peak LED, Power switch, and Volume control. You can utilize an AC adapter or 9-volt battery to power the receiver and if you unplug the unit, the battery is disabled to save power.

The AF1 Guitar Transmitters connects directly into the jack of the guitar. The AF1 connects in at a 45-degree angle for body mounted recessed jack. This transmitter provides complete wireless freedom with cables or no belt packs required. Allow up to 14 hours of battery life using a single AA battery.

Samson AirLine takes the idea of wireless to the next level with transmitters so lightweight and small, they are almost invisible, giving a genuine wireless experience with no belt packs or cables. For such modest and small transmitters, Samson developed innovative proprietary technology, featuring miniaturized circuitry that gives significantly advanced wireless reception and sound quality.

Product Features:

• AF1 Fender Style Transmitter with AP1 Pedal Receiver.
• Power switch with level control and DC input.
• Power On or Low Battery LED indicators and TX/Peak LEDs.
• Double swivel mounting antennas for optimum positioning.
• 1/4-inch unbalanced output jack with Squelch control.
• The transmitter works on a single AAA battery.

  ---

  Product Details:

• Brand: Samson
• Model Number: Fender Style
• Series: Airline
• Type of System: Floor Mount
• RF Carrier Frequency Range: 801 - 805 MHz F3/FM
• Approx. Working Range: 100m (328 Feet)
• Overall Frequency Response: 50Hz - 15kHz (at -30dBv ±4dB output)
• Signal-to-Noise Ratio; Greater than 95dB (IHF-A)
• Number Of Channels: 1 Fixed Channel (Channel U1/801.375 MHz)
• Number Of Simultaneous Systems: 6
• Type of Receiver: AF1 Floor Mount
• Type of Outputs: 1/4 inch Phone Jack, Unbalanced
• Power Requirements: AC Adapter (12v DC / More than 200mA) or 9v Battery
• Battery Type/Approx. Life: 9v,
• Display 2-color LED (x 2): Power On (Green) / Battery (Red)
• TX (Green) / Peak (Red)
• Mounting Options; Floor Mount Guitar Effects Pedal Style
• Antenna Type: Dual 1/4 Wave Length Rod Antennas
• Type of Transmitter: UF1 Plug-in Wireless UHF Guitar Transmitter
• Type of Output Connector: 1/4 inch Male Phone Plug
• Battery Type/Approx. Life: One, 14 Hours
• Mute Switch: Yes
• Level Control: Yes, Variable Level Control to Accommodate Different Pickups
• Antenna Type: Permanently Attached 1/4 Wave Length Wire
• Display Power: On (LED Flash), Low Battery
• Weight: 363 g
• Dimensions: 21 x 13.3 x 7.6 cm

• Country of origin: China
• Manufacturer details: SAMSON
• Packer details: SAMSON
• Importer details: SAMSON
