Roland Rubix 22 USB Audio Interface

Description

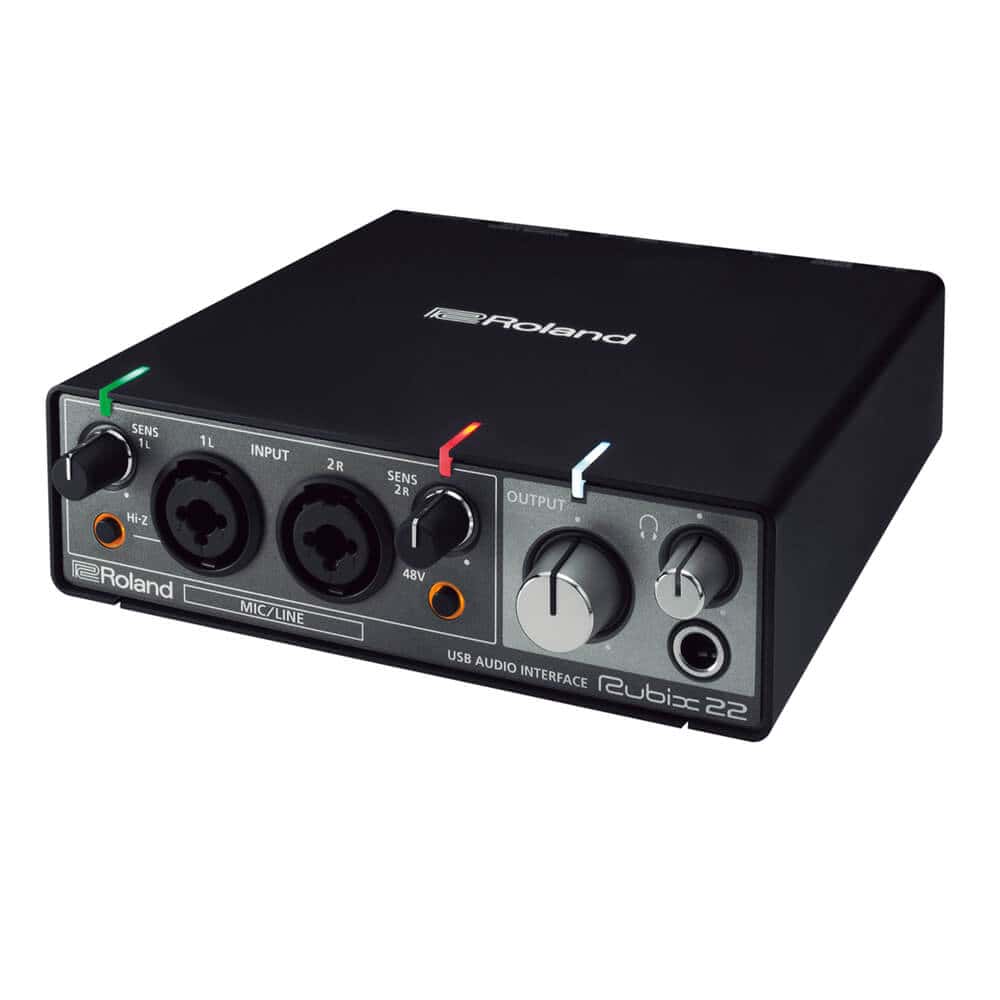

Roland Rubix 22 USB Audio Interface

Roland Rubix 22 USB Audio Interface is the perfect blend of top-class sound, sturdy construction and essential features that are demanded by today's musicians and producers. Its design is ultra-portable and flexible. It has 24 bit, 192 kHz high-resolution support, thus it can deliver clear and defined sound quality. Rubix is specially designed to have extremely low noise from input to output. With universal USB support, you can abruptly work with Mac or PC.

Roland Rubix 22 USB Audio Interface has low latency class compliant drivers for Mac and Pc, so you can easily begin and experience smooth and reliable audio performance.

Product features:

• MIDI port is available
• Two in, out USB audio interface
• Two low noise mic preamps with XLR combo jacks
• Fully protected and low noise design
• Compact and robust metal construction
• With Hi-Z input for guitar and other high impedance sources
• Ableton Live Lite support
• Simple and easy to understand dial indicators
• With ground lifts, it is perfect for quiet operation

  ---

Product details:

• Brand: Roland
• Model: Rubix 22

  ---

System

• Number of audio record or playback channels: playback 2 channels, record 2 channels
• Signal processing: AD or DA conversion 24 bits, PC interface 24 bits
• Sampling Frequency: AD or DA conversion 192 kHz, 96 kHz, 48 kHz, 44.1 kHz
• Interface: MIDI IN, OUT, Hi-Speed USB
• Connectors: INPUT connectors, INPUT jacks, USB port, MIDI connectors, PHONES jack, OUTPUT jacks, DC 5V port
• Controllers: DIRECT MONITOR switch, GROUND LIFT switch, POWER SOURCE switch, SENS 1L, 2R knobs, OUTPUT knob, Hi-Z switch, 48V switch, PHONES knob
• Indicator: POWER indicator, Level indicators, 48V indicator, Hi-Z indicator

  ---

Characteristics

• Nominal Input Level: INPUT connectors XLR type -60 to -12dBu, INPUT jacks TRS phone type -44 to +4 dBu
• Maximum Input Level: INPUT connectors XLR type +2dBu, INPUT jacks TRS phone type +18dBu
• Nominal Output Level: OUTPUT jacks -6dBu,
• Maximum Output Level: OUTPUT jacks +8dBu
• PHONES Maximum Output Power: 20mW + 20mW
• Headroom: 14 dB
• Input Impedance: INPUT connectors XLR type 4 k ohms or higher, INPUT jacks TRS phone type 15 k ohms or higher, INPUT jack 500 k ohms or higher
• Output Impedance: PHONES jack 47 ohms, OUTPUT jacks 2 k ohms
• Residual Noise Level: INPUT 1L, 2R to OUTPUT 1L, 2R -94dBu type
• Dynamic Range: DA block OUTPUT109 dB type, AD block INPUT jacks 1L, 2R 104 dB type

  ---

Other

• Power Supply: powered by PC through USB DC 5V
• Current Draw: 500mA
• Operating System: Apple iOS 9 or later, Apple Mac OS X 10.10 or later, Microsoft R Windows 7, 8, 8.1, 10
• Accessories: Setup Guide, Leaflet, USB cable, Ableton Live Lite Serial Number Card
• Width: 145 mm
• Depth: 165 mm
• Height: 46 mm
• Weight: 1 Kg

• Country of origin: China
• Manufacturer details: Roland
• Packer details: Roland
• Importer details: Roland
