M Audio AIR 192X4 USB Audio Interface

Description

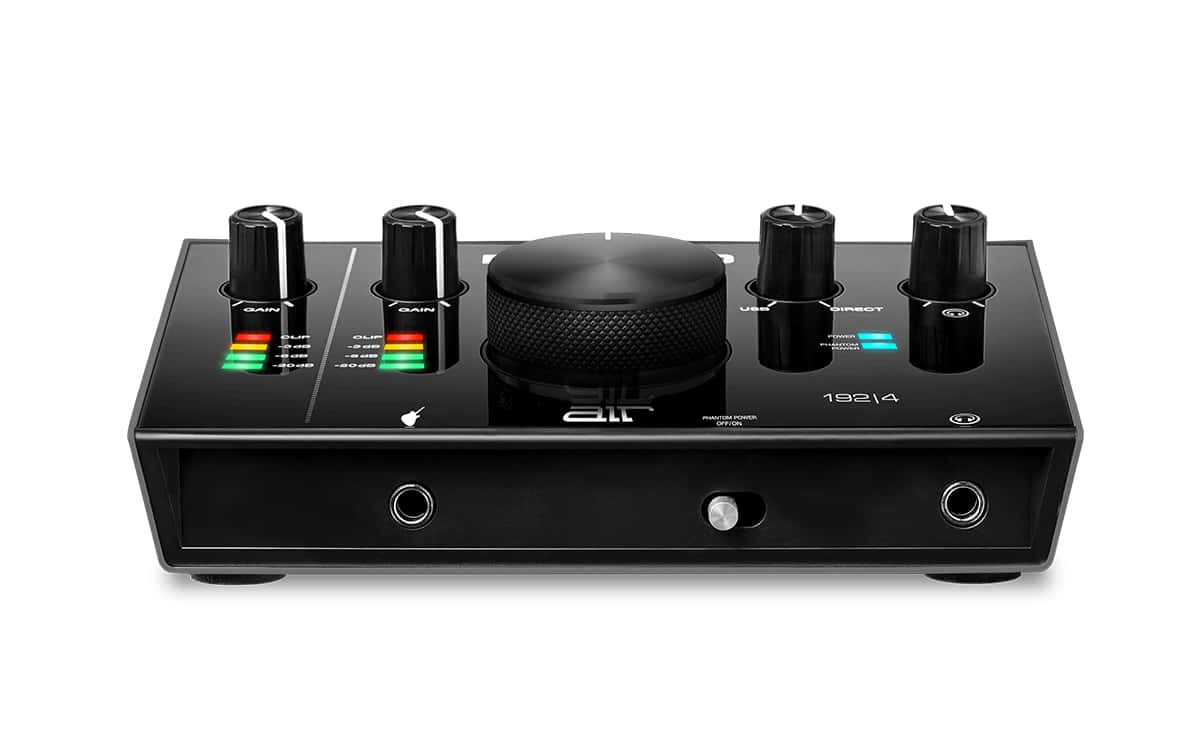

M-Audio AIR 192X4 USB Audio Interface

---

M-Audio AIR 192X4 USB Audio Interface is perfectly designed to create a perfect 24-bit/192kHz studio-quality recording with easy to use and automatic interface. It comes with dedicated XLR+¼ inch balanced combo input that allow you to record up 2 channels at once. And it's all in one ¼ inch instrument input is particularly designed to obtain and impedance stage to deliver the most precise representation of bass or guitar plugged directly into the interface.

---

Additionally AIR 192X4 is introducing with the comprehensive software package, including 2 powerful DAWs to accommodate your composition needs, First M-Audio Edition, and Ableton Live Lite. It also features a complete Virtual Instruments, Effects Plugin, and Loop package to cater to all your composition requirements. It also features Eleven Lite, 20 effect plugins, and AIR’s Creative FX Collection. Among the added AIR Virtual Instrument plugins, you’ll have a virtual drum machine, percussion, organ, synth, strings, and piano plugins to add world-class-sounding instruments to your songs with comfort.

---

M-Audio engineers invented the Crystal Preamps to equip you with a low-noise, transparent preamp that ensures the most reliable sound from your microphones and carries your performance precisely the way you planned. This AIR 192X4 combines primary A/D converters for 24-bit resolution digital audio with an explosively effective range that takes each nuance and elegance of the performance.

---

While recording, you need to concentrate on achieving that precise moment, and getting the most reliable performance out of your composition and talent. No need to bogged down by Clicks, Pops, or latency. It does not only feature a monitor mix control for listening directly to the source inputs, offers with zero-latency technology however, it also features a high-speed USB connection for giving the lowest round trip latency (2.59ms) between your hardware and machine.

---

Product Features:

• 24-bit/192kHz resolution for professional recording and monitoring.
• Hi-Speed USB circuitry offers the fastest connection.
• Class-leading round trip latency of only 2.59ms.
• Ultra-pristine A/D converters and Transparent Crystal preamps for unique audio recording quality.
• VU LED meters for turning in the supreme level.
• XLR+¼ inch TRS combo input.
• Dedicated signal circuit.
• (1) ¼ inch instrument input.
• ¼ inch headphone out, Stereo ¼ inch outs.
• Sturdy metal chassis; large central control for smooth volume adjustment.
• USB/Direct control for coordinating between the computer signal and input signal.

  ---

Software Included:

• Pro Tools | First M-Audio Edition
• Eleven Lite
• AIR Creative FX Collection
• AVID Effects Collection
• AIR Music's Instrument Collection
  • Boom - Drum Machine
  • Vacuum - Monophonic Tube Synth
  • Mini Grand - Acoustic Pianos
  • Xpand!2 - Multitimbral Workstation

16991638. Live Lite

8942188. Loops 2GB Loop Library

         ---

Product Details:

• Brand: M-Audio
• Model Number: AIR 192X4

Mic Input 1 (balanced XLR)

• Frequency Responce: 20 Hz – 20 kHz (+0.1 dB)
• Dynamic Range: 104 dB (A-weighted)
• Signal To Noise Ratio: 104 dB (+1.0 dBu, A-weighted)
• THD+N: 0.003%
• PREAMP EIN: -128 dBu (max gain, 150 Ω source, A-weighted)
• Max Input Level: +1.5 dBu
• Gain Range: 55 dB

Line Input 1 (balanced 1/4 Inch [6.35 mm] TRS)

• Frequency Responce: 20 Hz – 20 kHz (+0.05 dB)
• Signal To Noise Ratio: 101 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.003%
• Max Input Level: 16 dBu
• Gain Range: 55 dB

Inst Input 2 (unbalanced 1/4 Inch [6.35 mm] TS)

• Frequency Responce: 20 Hz – 20 kHz (+0.05 dB)
• Dynamic Range: 100 dB (A-weighted)
• Signal To Noise Ratio: 102 dB (+ 4 dBu, A-weighted)
• THD+N; 0.004%
• Max Input Level: 6 dBu
• Input Impedance: 1 MΩ
• Gain Range: 24 dB

Main Outputs, L and R (balanced, differential 1/4 Inch [6.35 mm] TRS)

• Frequency Responce; 20 Hz – 20 kHz (+0.06 dB)
• Dynamic Range / Signal To Noise Ratio: 102 dB (A-weighted)
• THD+N: 0.005%
• Max Output Level: +7 dBu (1 kHz, -1 dBFS)

Headphone Output (impedance-balanced 1/4 Inch [6.35 mm] TRS)

• THD+N: 0.005%
• Output Impedence: 10 Ω

General

• Power; USB-bus-powered
• Dimensions: 8.0 x 6.0 x 2.76 inches (20.42 cm x 15.24 cm x 7.0 cm)
• Weight: 2.0 lbs. 0.9 kg
