JBL M2 Master Reference Monitor System

Description

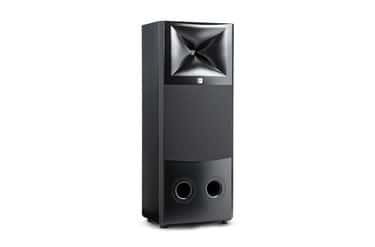

JBL M2 Master Reference Monitor System

JBL M2 Master Reference Monitor System is perfectly designed to allow you to lets you smoothly integrate the large monitoring experience into your studio. JBL understanding the increasing demand for high dynamic range and reference-monitor accuracy in a wide range of studios, JBL has produced the M2 Master Reference Monitor: professional quality Free-Standing, 2-Way System that can be put in any situation to give an excellent accurate monitoring experience. Features a modern generation of JBL high-output, ultra-low distortion transducers, it gives an in-room frequency response of 20 Hz to 40 kHz, and an amazing 123 dB maximum SPL to satisfy the critical music, cinema, and broadcast production conditions for impactful dynamic range.

 Product Features:

• Ultimate High-Frequency Driver for Critical Reference Monitoring Extended HF Reproduction Smooth Response High Power Handling Measurably Lower Distortion Reduced Power Compression Increased
• Compression, High Output, Very Low Distortion.
• Powerful Imaging and Sound Stage, Excellent High-Frequency Detail, Patent Pending Design, Uniform Directivity for Smooth In-Room Response.
• LSR Linear Spatial Reference Design.
• Extended Bass Performance, Small Footprint, Patented Low-Frequency Port Design.
• Dynamic Headroom.
• Extraordinary Low-Frequency Extension, Very Low Power.

  ---

Product details:

• Brand: JBL
• Model Number: M2
• System Format: 2-Way Floor Standing or Soffit Mountable
• High Frequency Model: D2430K Dual Diaphragm Dual Voice Coil Compression Driver
• Low Frequency Model: 2216Nd 15 in (381 mm) Differential Drive Woofer
• Crossover Frequency: 800 Hz
• Frequency Range: 20 Hz - 40 kHz
• Image Control Wave Guide Dispersion: 120 H x 100 V degree
• Sensitivity 1W/1m SPL: 92 dB
• Continuous/Peak SPL 1m: 117 dB /123 dB; 108 dB Peak SPL  8m
• The System Requires: One Crown® iTech 5000HD power amp for each speaker, or BSS Soundweb London Processor with Crown Macro-Tech MA-5000i
• Recommended Amplifier Power: 1,200 Watts into 8 ohms
• Input Connectors: Spring Terminals
• Enclosure Construction: 25 mm (1 in) MDF
• Finish: Satin Black Lacquer
• Included: Removable ABS Grille with Black UL Compliant Fabric
• Dimensions (W x H x D): 508mm x 1256mm x 355.6mm (20in x 49.5in x 14in)
• Weight: 58.5 kg (129 lb)
•  1-year manufacturer warranty

• Country of origin: China
• Manufacturer details: Jbl
• Packer details: Jbl
• Importer details: Jbl
