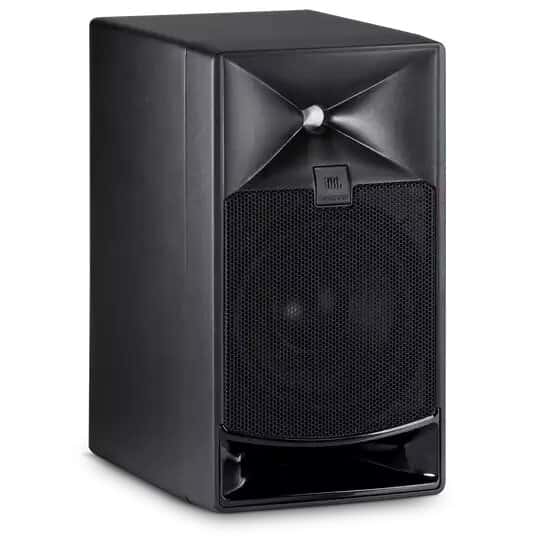

JBL LSR705i 5 Inch Master Reference Monitor

Description

JBL LSR705i 5-Inch Master Reference Monitor

JBL LSR705i 5-Inch Master Reference Monitor is perfectly designed as a scalable and modular solution for post-production and broadcast applications, this LSR705i from JBL comes with a great combination of other 7 series monitors and JBL's Master Reference Monitor to produce a variety of systems depending on your needs. Its 5-inch woofer is able to offer frequencies down to 39 Hz when its high-frequency driver replies up to 36 kHz. Due to the 7 series' centralized processing and amplification, you do not require a power source at each position for stereo or surround setups.

It comes with Image Control Wave Guide technology that provides for an uncolored response and seamless crossover in the significant dialog range, a neutral off-axis response for detailed imaging and room-to-room consistency, and coherent transition between surrounds, screen channels, and overhead speakers.

Meeting the extended frequency response and dynamic range demands of today's production formats, 7 Series combines JBL's Super Drivers that can produce high-frequency response beyond 30 kHz.

Additionally, its 725G 5-inch high excursion low-frequency driver gives continuously minimal power compression and high output and low-frequency response into the 30 Hz range.

 Product Features:

• Scalable and Modular for a number of channels and room size.
• JBL M2 Master Reference Monitor and 7 Series Studio Monitors can be combined to produce a broad range of systems.
• Mounting hardware and compact enclosures let versatile mounting options and unobstructed sightlines.
• Centralized processing and amplification exclude the requirement for a power source at each speaker location.
• BSS BLU link Networked Audio for comfort interface and decreased system noise.
• Harman HiQnet includes components that can be centrally controlled via software, hardware, or wireless tablet.

  ---

Product details:

• Brand: JBL
• Model Number: LSR705i
• Frequency Response (±3 dB): 48 Hz – 23 kHz
• Frequency Range: 39Hz – 36 kHz
• Maximum Continuous SPL: (80 Hz - 20 kHz) >101 dB SPL / 1m
• Maximum Peak SPL: (80 Hz - 20 kHz) >107 dB SPL / 1m
• HF Driver: 2409H
• LF Driver: 725G - 5in (127mm)
• Dividing Network Transition Frequency: 1.9 kHz
• Input Connectors: Phoenix Terminals accept 12 gauge speaker wire
• Dimensions (HxWxD): 10.5 x 5.875 x 8.125 in
• Net Weight (each): 9.0 lb (4.08 kg)
• Enclosure: Birch plywood reinforced for mounting
• Mounting: Top, bottom, and rear mounting points. 2-hole mounting pattern
• Dimensions: 35.3 x 27.7 x 22.8 cm
• Weight: 4.08 Kg
•  1-year manufacturer warranty

• Country of origin: China
• Manufacturer details: Jbl
• Packer details: Jbl
• Importer details: Jbl
