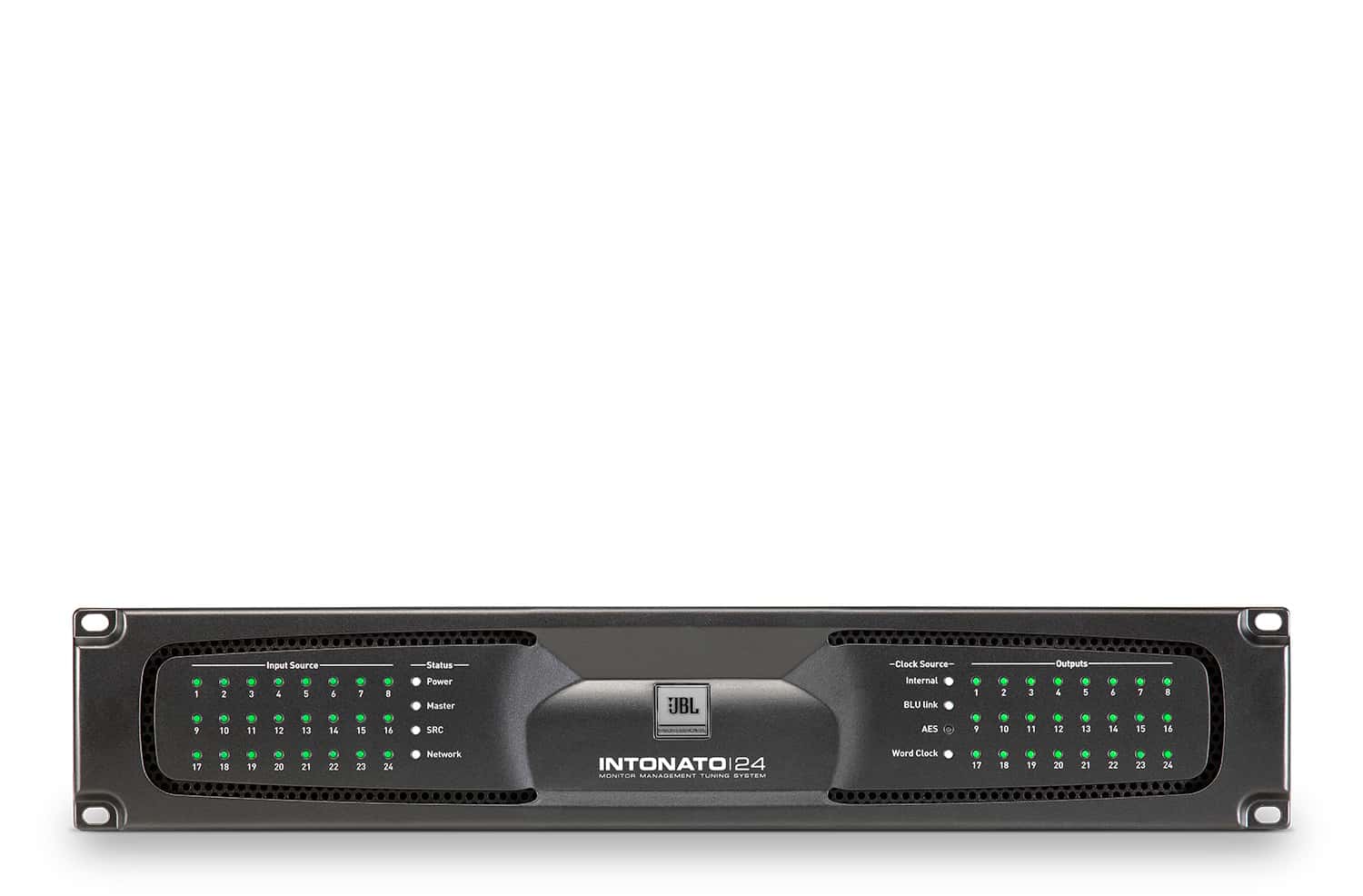

JBL INTONATO24MX Intonato 24 Channel Monitor Management Tuning System

Description

JBL INTONATO24MX Intonato 24 Channel Monitor Management Tuning System

JBL INTONATO24MX Intonato 24 Channel Monitor Management Tuning System is perfectly designed to offer you control of professional monitoring and automated calibration systems. Carefully calibrate and control up to 24 speakers configured as surround, stereo, or deep in audio applications for post-production houses, professional recording studios, and more.

JBL 7 Series studio monitors pairs with Intonato 24 and are perfectly designed for amazing audio production in control rooms of any size, yet will operate with any monitor speaker. This Intonato 24 runs with any powered or passive speaker. Also, the HARMAN BLU link interface protocol enables it to be digitally networked with Crown power amplifiers.

Made with 24 analog outputs and inputs and 24 AES/EBU inputs on 25-pin D-Sub connectors, the monitor management tuning system needs breakout cables. Added software sets the system's monitoring characteristics at your fingertips, and the clearly available Desktop Controller gives tactile access to the key roles of the Intonato 24.

 Product Features:

• Fit with all professional studio monitors.
• Input connections for 24 analogs.
• Software-controlled analog input sensitivity switches, gain trims, and level indicators.
• Output connections add 24 analog outputs to power amplifiers and powered speakers; BLU link output provides a networked connection to HARMAN Crown power amplifiers.
• Selectively monitor via one or more monitoring systems of up to 24 speakers
• Mute, Volume, and Dim controls, plus exclusive speaker Mute and Solo.
• Automated Speaker Calibration with added microphone accurately balances, tunes and aligns all speakers to give higher accuracy to the mix position in any room; 12 bands of Room EQ, Level per speaker, Delay.
• Per-speaker, 8-Band User EQ lets customized and standard response curves such as X-Curve and compensation for perforated screen transmission loss.
• Advanced subwoofer combination for LFE channels and bass management
• Variable Audio/Video Sync delay provides compensation for video performance latency.
• Create, save, and immediately recall project-specific configurations and speaker tunings.
• Automatic setup and control with included Windows, Macintosh, and iOS/Android tablet software or arbitrary Intonato Desktop Controller
• Low-noise fan for smooth operation.

  ---

Product details:

• Brand: JBL
• Model Number: INTONATO24MX
• BLU Link Audio Connectors: 2 x RJ45
• Latency: 11/Fs (0.23 ms @ 48 kbps, 0.11 ms @ 96 kbps)
• Pass-Through Latency: 4/Fs (0.08 ms @ 48 kbps, 0.04 ms @ 96 kbps)
• Word Clock Input: 44.1, 48, 88.2, 96 kHz supported sample rate tolerance
• A/D Converter: 24-bit
• Dynamic Range: AD: 114 dB A-weighted
• DA: 115 dB A-weighted
• DA Conversion: 24-bit
• Word Length: Internal Processing: 32-bit
• Supported Sample Rate: 44.1, 48, 88.2, 96 kHz; 32-192 kHz, sample-rate converters enabled
• Dynamic Range: 114 dB A-weighted, 112 dB unweighted
• Total Harmonic Distortion (THD) + N: 0.007% typical at +4 dBu, 1 kHz, 0 dB input gain
• Frequency Response: 20 Hz to 20 kHz, +0 /- 0.5 dB
• Latency: AES In to Analog Out (96 kHz): 2.15 ms, BLU Link Input to BLU Link Output (96 kHz): 0.04 ms
• Speaker Tuning Presets: JBL 705i, 708i, and M2
• Equalization: User: 8-band fully parametric EQ with selectable filter type
• Room: 12-band fully parametric EQ
• Crossover Adjustment: Variable
• Speaker Output: Delay: Up to 18 ms per output channel for speaker time-of-arrival offset
• Synchronization: A/V Delay: Up to 150 ms (globally applied to all output channels except aux outputs
• AUX Outputs: Delay: Up to 150 ms
• Volume Control: Master: -120 dB to 0 dB, Dim: User adjustable, -120 dB to 0 dB
• With Phantom Power: +48 VDC
• Rack Height: 2 RU
• Dimensions: 8.9 x 34.9 x 48.3 cm
• 1-year manufacturer warranty

• Country of origin: China
