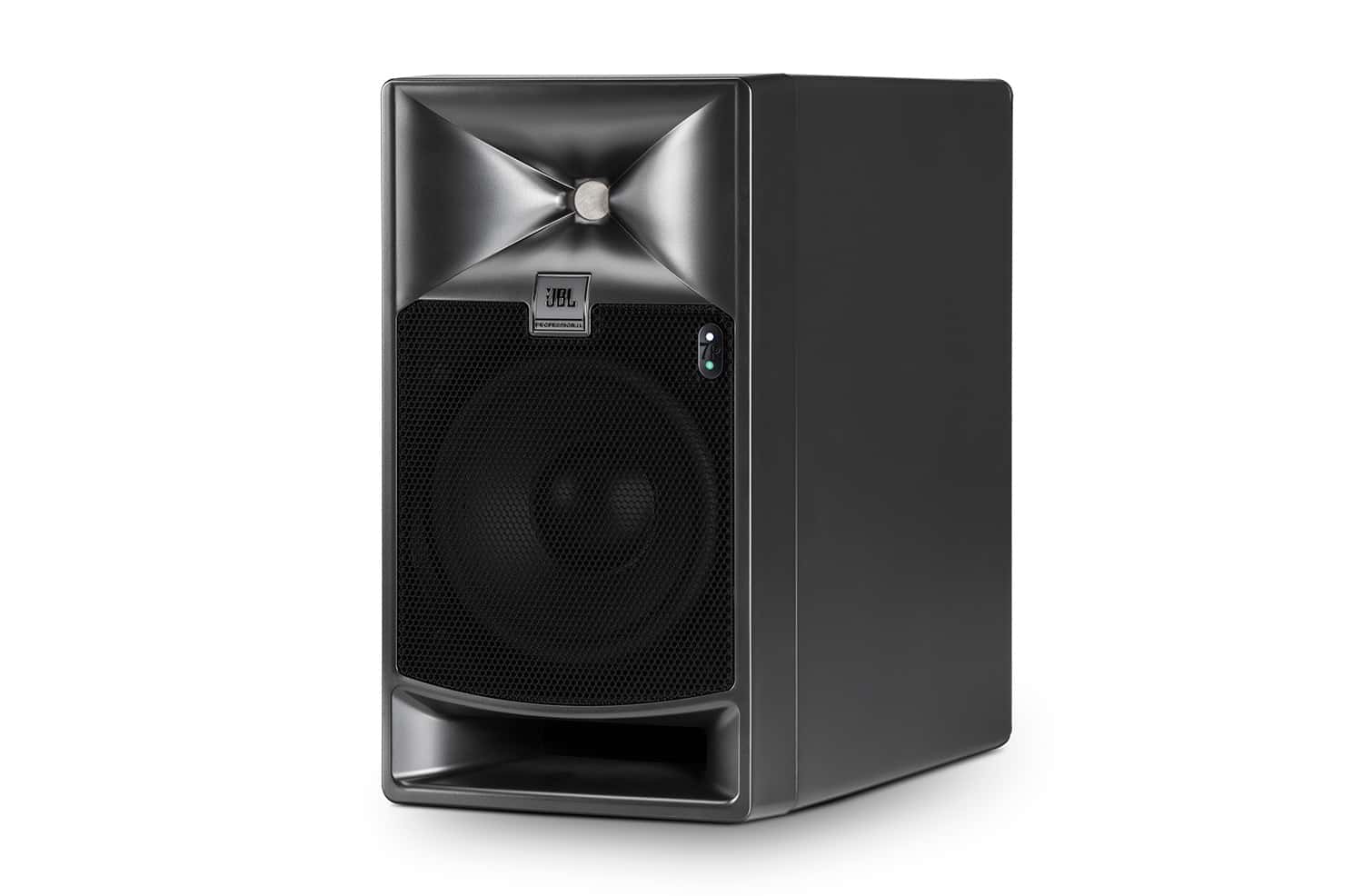

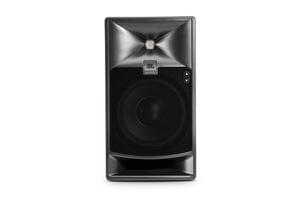

JBL 705P 5-Inch Bi-Amplified Master Reference Monitor

Description

JBL 705P 5-Inch Bi-Amplified Master Reference Monitor

JBL 705P 5-Inch Bi-Amplified Master Reference Monitor is perfectly designed to use leverages next-generation JBL driver advanced technologies to offer superior frequency response and greater dynamic range. This 2409H high-frequency compression driver includes an exceptional low-mass annular diaphragm to give a flat response beyond 36 kHz, with extremely low distortion. It features a 725G low-frequency transducer that gives 14mm peak-to-peak excursion with more comprehensive linearity, presenting excellent low-frequency output below 39 Hz. These exclusive drivers enable the 705P to provide two to three times the output of existing studio monitors.

Patented JBL Image Control Waveguide assures neutrality and accuracy while presenting a broad sweet spot with improved sonic detail. By allowing an acoustically seamless transition between the high-frequency and low-frequency transducers, the waveguide offers a specified soundstage and accurate imaging across the complete frequency spectrum. The flat, on- and off-axis frequency response lets the JBL 705P give a neutral response across a broad listening area in a wide range of rooms.

JBL 705P is equipped with a built-in double amplification system that’s developed for its high-output drivers. Plus its 250W amp is dedicated to the 725G low-frequency transducer and the 250W amp powers the 2409H high-frequency transducer. This combination gives excellent output and permits for higher listening distances, presenting them perfect for mastering environments or post-production.

 Product Features:

• Next-generation JBL driver technology with Patent-pending JBL Image Control Waveguide.
• Combined dual amplification system with interior floating-point DSP.
• Complete room EQ and delay controls.
• Compact enclosures for comfortable installation and placement.

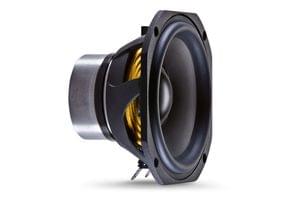

• JBL 725G low-frequency transducer offers high SPL and low distortion.

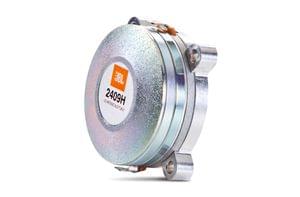

• JBL 2409H high-frequency transducer offers a low-mass annular diaphragm.
• Patent-pending JBL-designed Image Control Waveguide.
• 192 kHz, 32-bit floating-point processing with 2-channel Class-D amplifier HF 250W / LF 250W.
• 8 bands of User EQ, 12 bands of Room EQ.
• 6 user-defined presets, 6 factory presets.
• 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
• 1 x XLR-1/4 inch balanced combination analog audio input.

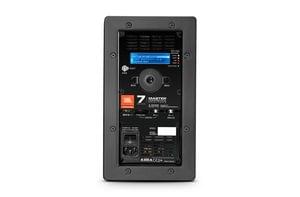

• LCD display and rear-panel multi-function controls allow selection of input sensitivity, input trim, User EQ, Room Delay, Room EQ, AV Sync Delay.

  ---

Product details:

• Brand: JBL
• Model Number: 705P
• Frequency Response (±3 dB): 45Hz-25kHz
• Frequency Range: 39Hz – 36 kHz
• Max Continuous SPL: (80 Hz - 20 kHz) >101 dB SPL / 1m
• Maximum Peak SPL: (80 Hz - 20 kHz) >107 dB SPL / 1m
• HF Driver: 2409H
• LF Driver: 725G - 5in (127mm)
• Dividing Network Transition Frequency: 1.9 kHz
• Input Connectors:
• 1 x XLR balanced analog audio input
• 1 x XLR AES3 format digital input with
• 1 x XLR pass-through output
• Digital input will accept sample rates up to 192 kHz
• Enclosure: Birch plywood reinforced for mounting
• Mounting: Top, bottom and rear mounting points. 2-hole mounting pattern
• LF Driver Power Handling: 250W Class D
• Amplifier Power Rating: 250W
• Dimensions (HxWxD): 268 x 151 x 274 (10.56 x 5.94 x 10.80)
• Net Weight (each): 5.68 kg (12.5 lbs.)
•  1-year manufacturer warranty

• Country of origin: China
• Manufacturer details: Jbl
• Packer details: Jbl
• Importer details: Jbl
