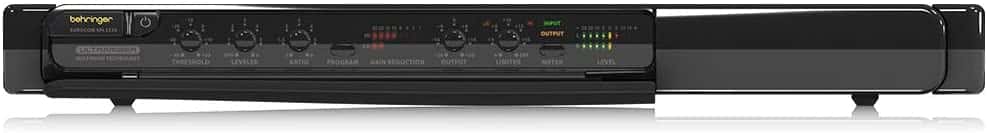

Behringer EUROCOM SPL3220 Stereo Multiband Sound Processor

Description

Behringer EUROCOM SPL3220 Stereo Multiband Sound Processor is perfectly designed to offer you seamless, dependable full-loudness control without losing the sonic integrity of the sound system, or the listening enjoyment of the audience.

Due to its onboard, IKA (Interactive Knee Adaptation) compression and multiband IGC (Interactive Gain Control), the SPL3220 enables you to employ processing with surgical accuracy for best punch and clarity, without the audible artifacts connected with traditional broadband dynamics processors. In addition, the SPL3220 can be utilized for mix leveling and increasing signal density at low volumes, where perceived loudness becomes yet more important. Add to this the capability to improve speech clarity and give enhanced loudspeaker protection, while maintaining dynamic range and the EUROCOM SPL3220 becomes a vital part of your audio engineer’s toolkit.

Product Features:

• High-quality multiband sound processor for public address, mastering, and broadcasting applications
• Multiband technology gives for optimal and active audio processing without audible pumping artifacts
• Loudness maximization to achieve increased signal density for competitive broadcast sound and public address
• Leveler automatically produces the signal density for harmonized loudness and improved listening experience
• Protects speaker systems that are submitted to a constant operation at maximum SPL
• Controls the amazing allowable sound pressure level in public musical environments such as pubs, discotheques, etc.
• Speech improved to dramatically improve speech clarity for PA applications such as airports and emergency announcement systems
• IKA (Interactive Knee Adaptation) compressor emphasizes low compression and prevents pumping due to low-frequency signals
• True stereo operation through RMS energy summing for enhanced stereo imaging
• IGC (Interactive Gain Control) peak limiting circuitry connects clipper and program limiter for safe and inaudible protection against signal peaks
• Operating level switchable from +4 dBu to -10 dBV
• Light, low noise, and efficient switch-mode power supply for noise-free audio, efficient transient response, and low power consumption
• Reliable, 8-segment input/output level and gain reduction meter
• Two balanced/unbalanced inputs on combination line-level XLR/TRS and 3-pin Euroblock connectors
• Hinged front door panel covers the control surface plus the power switch
• Rack ear screw covers, IEC-type AC power cord, and all mating Euroblock connectors included
• Pro-quality components and sturdy construction ensure long life

Product details:

• Brand: Behringer
• Model Number: EUROCOM SPL3220
• Audio Input
• Type: RF filtered, servo-balanced input
• Impedance: 60 KΩ
• Nominal Operating Level: -10 dBV to 4 dBu
• Maximum Input Level: 20 dBu balanced and unbalanced
• CMR: >40 dB at 1 kHz
• Audio Output
• Type: Electronically servo-balanced output stage (optional transformer-balanced). Automatic level correction for unbalanced use (correction: 6 dB)
• Impedance: <40 Ω, balanced and unbalanced
• Maximum Input Level: 26 dBm balanced,20 dBm unbalanced
• Bandwidth: 5 Hz to 100 kHz, +0, -3 dB
• THD: 0.02% typical at 4 dBu, 0.1% typical at 20 dBu
• IMD: 0.01% typical (SMPTE) at 10 dBu
• Hum & Noise: >-93 dBu (20 Hz to 20 kHz, unweighted) at unity gain
• Crosstalk: >-85 dBu at 20 kHz
• CMR: >40 dB at 1 kHz
• Crossover
• Type: 24 dB Butterworth filter
• Frequencies: Corner Frequencies: Switchable (500 Hz / 2 kHz)
• Compressor
• Type: Multiband IKA (Interactive Knee Adaptation) Compressor
• Controls: THRESHOLD: Variable (-40 to 20 dBu)
• LEVELLER: Variable (Off to 6)
• RATIO: Variable (1:1 bis 6:1)
• OUTPUT: Variable (-20 bis +20 dB)
• Peak Limiter Section
• Type: Multiband IGC (Interactive Gain Control) Peak Limiter
• Level Control: Variable (0 to 20 dBu)
• LED: Band Limit LEDs: Indicators for LOW and HIGH BAND limiter operation
• Switches: In/Out DC controlled hard -bypass relay
• Power Supply
• Voltage: 100 to 240 VAC, 50 to 60 Hz
• Power Consumption: 10 W
• Mains: Standard IEC receptacle
• Dimensions: 44.4 x 482.6 x 193.0 mm
• Weight: 6.6 lb (3.0 kg)
