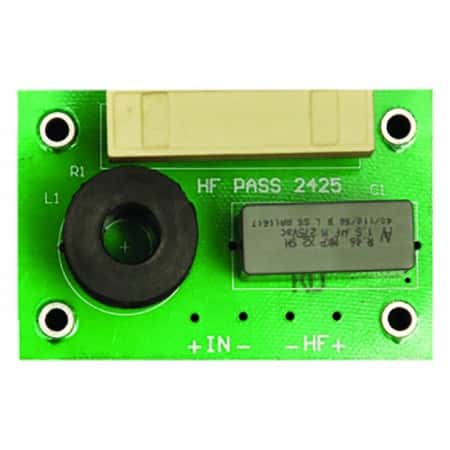

A Plus 2425 8 Ohm Crossover Network

Description

A Plus 2425 8 Ohm Crossover Network

A Plus 2425 8 Ohm Crossover Network is perfectly designed to divide an audio signal into various frequency bands. This is done to optimize which frequencies are delivered to multiple speaker drivers, for example, a woofer for low frequencies and a tweeter for high frequencies. It is hard for one driver to correctly reproduce sound waves over the entire 20 Hz to 20 kHz frequency range of human hearing.

A Plus 2425 splitting the frequency range up to into multiple bands with a crossover, each dedicated to their own driver, allows the speaker to more efficiently reproduce full-range audio with better fidelity.  Ideally, when a crossover network is used in a speaker enclosure, a crossover frequency is chosen that protects the tweeter, allowing it to produce only those frequencies that it can reproduce the best, and allows both the response and coverage pattern of the woofer to blend well with the tweeter.

Product Features:

• Crossover network is a great choice for higher power 3-way systems.
• The midrange section uses a true bandpass filter with a response of 4500Hz
• All crossover frequencies are rated into an 8-ohm load.

  ---

Product details:

• Brand: A Plus
• Model: Network 2425
• Recommended Drivers: H.F CT-2425, NHP4000
• Power: 50W
• Impedance: 8 Ohm
• Frequency: 4500Hz
• Manufacturer Warranty: 1 Year

• Country of origin: China
• Manufacturer details: A-Plus
• Packer details: A-Plus
• Importer details: A-Plus
